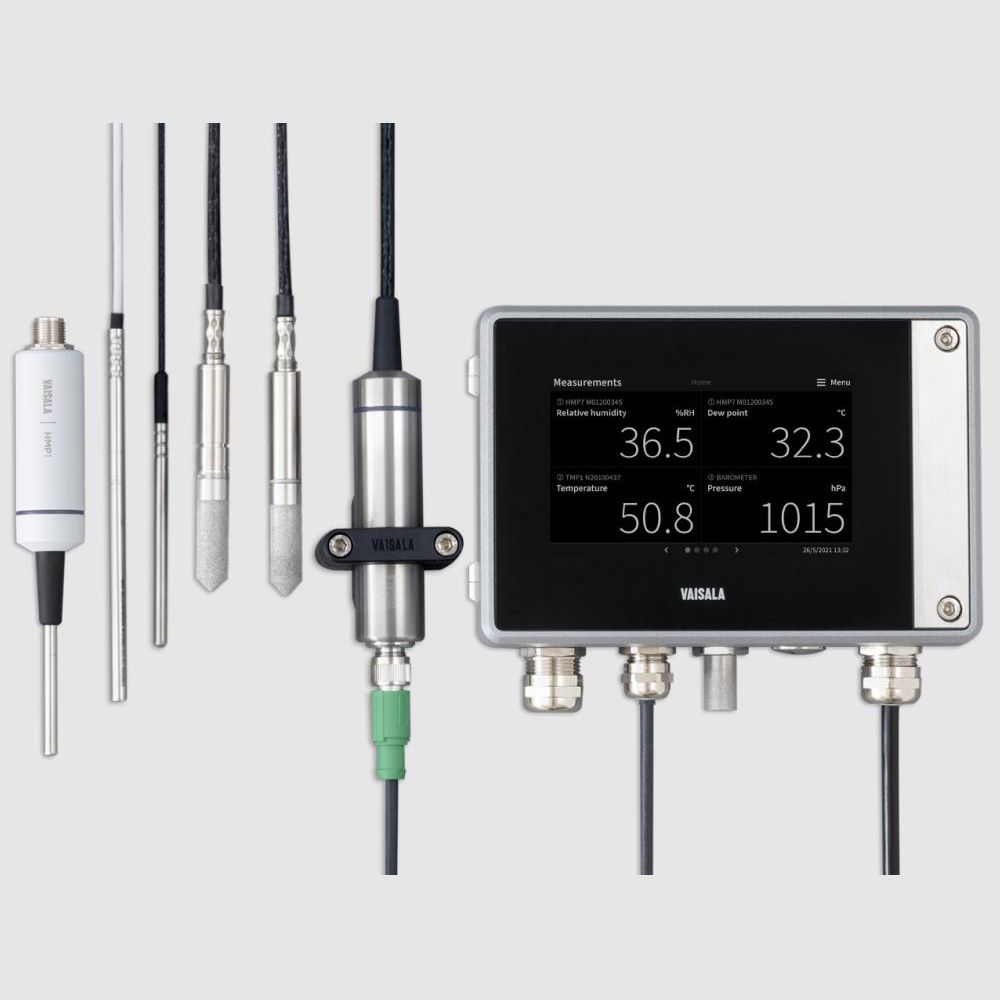

Vaisala Indigo520 Series: Transmitter for Smart probes

ทรานสมิตเตอร์รุ่นใหม่ล่าสุดจาก Vaisala

• ทนทาน สะดวก
• สามารถต่อหัววัดอุณหภูมิ ความชื้น ได้ถึง 2 ช่อง
• หน้าจอแสดงแบบสัมผัส ขนาดกว้าง แสดงผลได้ทั้งในรูปแบบตัวเลขและกราฟิก
• มีสัญญาณ Analog output รีเลย์ หรือ Modbus TCP/IP Protocol

สามารถใช้ร่วมกับหัวโพรบ HMP3, HMP4, HMP5, HMP7, HMP8 และ HMP9 ได้

• Available with field replaceable HUMICAPâ R2 sensor
• RH accuracy up to 0.8 %RH
• Temperature accuracy up to 0.1 °C (0.18 °F)
• Temperature measurement range −40 … +120 °C (−40 … +248 °F)
• Compatible with Indigo series of transmitters and Insight PC software

HMP4 Relative Humidity and Temperature Probe for Pressurized and Vacuum Processes

• RH accuracy up to ±0.8 %RH
• Temperature accuracy up to ±0.1 °C (±0.18 °F)
• Temperature measurement range −70 … +180 °C (−94 … +356 °F)
• Operating pressure 0 … 10 MPa (0 … 100 bar)
• Sensor purge provides superior chemical resistance
• Modbus RTU over RS-485
• Compatible with Indigo transmitters and Insight PC software
• Traceable calibration certificate: 6 points for humidity

HMP5 Relative Humidity and Temperature Probe For High Temperatures

• RH accuracy up to 0.8 %RH
• Temperature accuracy up to 0.1 °C (0.18 °F)
• Temperature measurement range -70 ... +180 °C (-94 ... +356 °F)
• 250 mm (9.84 in) probe allows easy process installation through insulation
• Sensor purge provides superior chemical resistance
• Modbus RTU over RS-485
• Plug & play compatible with Indigo™ series of transmitters
• Traceable calibration certificate: 5 points for humidity, 1 point for temperature
• Sintered AISI316L filter standard in delivery

HMP7 Relative Humidity and Temperature Probe for High Humidities

• RH accuracy up to 0.8 %RH
• Temperature accuracy up to 0.1 °C (0.18 °F)
• Temperature measurement range -70 ... +180 °C (-94 ... +356 °F)
• Vapor and pressure proof construction
• Probe and sensor warming functions minimize condensation on probe
• Sensor purge provides superior chemical resistance
• Modbus RTU over RS-485
• Plug & play compatible with Indigo series of transmitters
• Traceable calibration certificate: 5 points for humidity, 1 point for temperature

HMP8 Relative Humidity and Temperature Probe for Pressurized and Vacuum Processes

• RH accuracy up to ±0.8 %RH
• Temperature accuracy up to ±0.1 °C (±0.18 °F)
• Operating pressure 0 … 4 MPa (0 … 40 bar)
• Temperature measurement range −70 … +180 °C (−94 … +356 °F)
• Sensor purge provides superior chemical resistance
• Probe installation depth can be freely adjusted and probe can be hot-swapped from pressurized pipelines with an installation valve
• Modbus RTU over RS-485
• Compatible with Indigo transmitters and Insight PC software
• Traceable calibration certificate: 6 points for hum

HMP9 Compact Humidity and Temperature Probe

• Miniature probe head with low thermal mass for superior response time
• RH accuracy up to 0.8 %RH
• Temperature accuracy up to 0.1 °C (0.18 °F)
• Temperature measurement range −40 … +120 °C (−40 … +248 °F)
• Sensor purge provides superior chemical resistance
• Modbus RTU over RS-485
• Compatible with Indigo transmitters and Insight PC software
• Traceable calibration certificate: 6 points for humidity, 1 point for temperature
• M10×1.5 cable gland included for mounting the probe head
