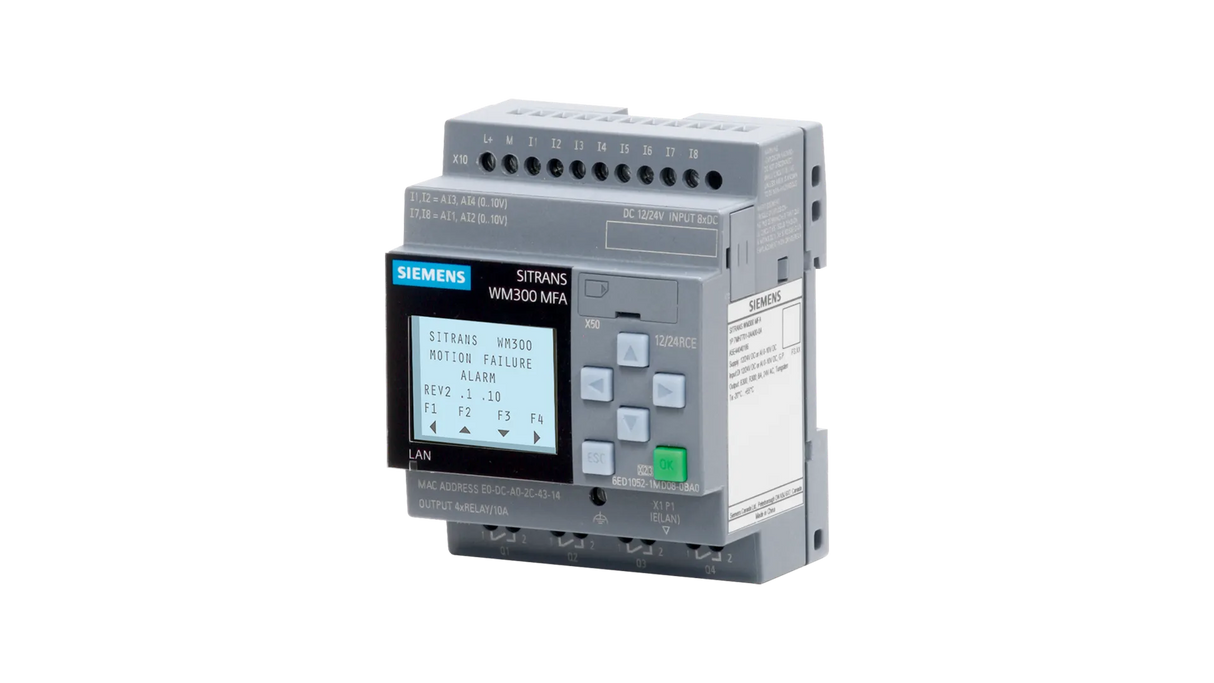

SITRANS WM300 MFA

Process controlling and protection
Process protection devices can be used as early warning systems to avoid costly interruptions and breakdowns of equipment. They detect flow systems, blockages, screen faults, machinery slowdowns, or burst filter bags. Their rugged construction makes them impervious to dust, dirt buildup, and moisture.

• Cost-effective way to protect valuable process equipment
• Over and under speed setpoint detection
• Setpoint adjustment range 2 to 5 000 Hz (120 to 300 000 ppm)
• Adjustable start-up time delay
• Visual indication of probe operation and relay status

Detail

• Power Supply: 10.8 to 28.8 V DC, 25 to 165 mA
• Inputs: Current pulse from Motion Sensing Probes
• Outputs: 4 relay outputs
• Operating Temperature: -20 to 50 °C (-5 to 122 °F)
• Enclosure: Polycarbonate

Documents

• Spec Sheet
• Manual
