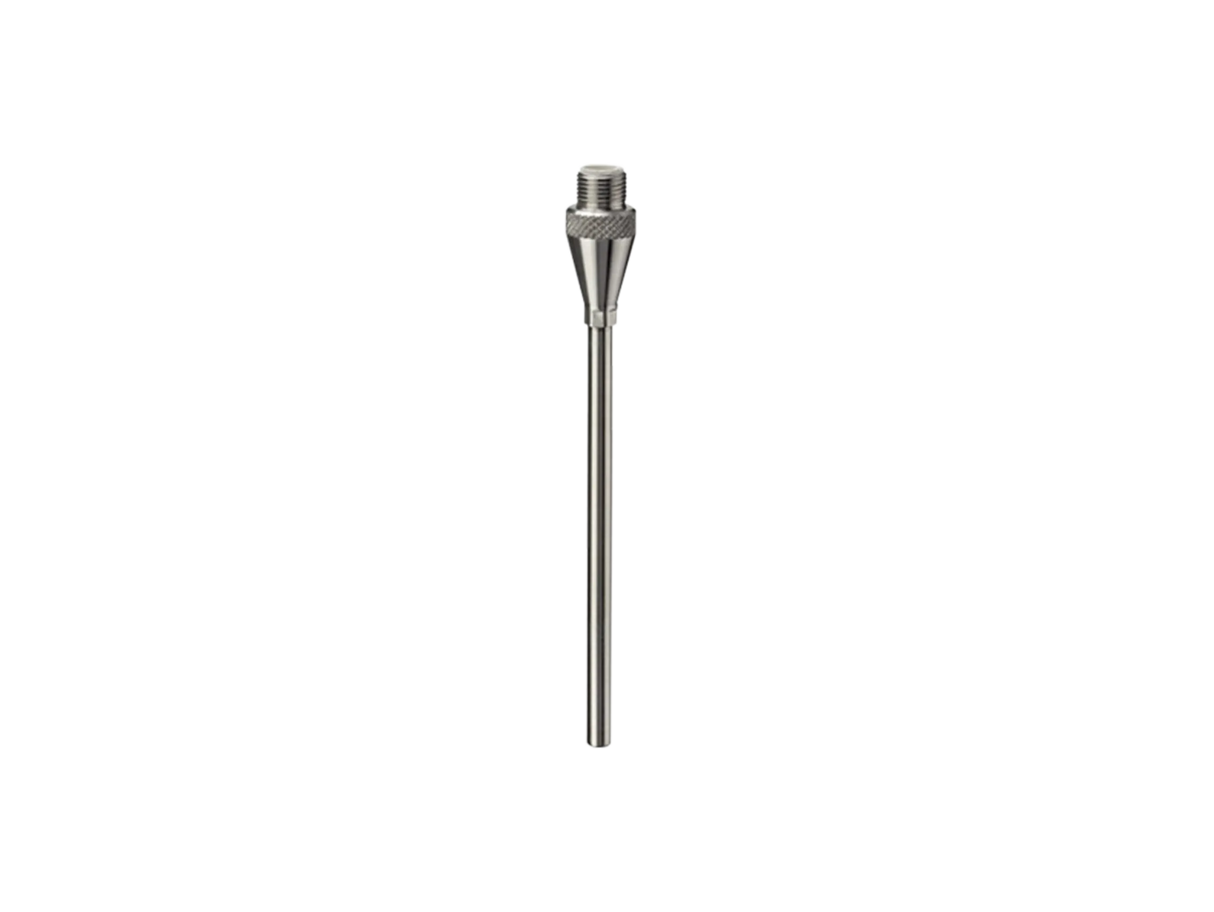

SITRANS TS200
0.00 ฿
Unit price
/
Unavailable
SITRANS TS200 is backordered and will ship as soon as it is back in stock.
กดเพื่อ : ขอใบเสนอราคา ผ่าน Line
-
Features-
-
Spec Sheets-
-
Manuals-
The construction of the SITRANS TS200 temperature sensor line is based on mineral insulated cable (MIC) and supports a wide range of applications. Due to compression fittings or soldering nipples the installation is simple and flexible and is possible up to Zone 0 without the need of an additional thermowell.
- Simple mounting - Compression fittings or soldering nipples enable a fast commissioning
- Universal – Sensor line is designed to serve a wide range of applications
- Customizable – SITRANS TS200 is based on a modular platform offering variety
- Safe solution – Explosion protection by intrinsically safety Ex i (IS) even in Zone 0
- Certificates for major markets
Detail
- Output direct sensor signal
- Max. operation temperature Pt 100 Basic: - 50 ... +400 °C (-58 ... +752 °F)
- measuring point Pt 100 Extended: -196 ... +600 °C (-320.8 ... +1 112 °F)
- cable end Thermo couple -40 ... +1250°C (-40 ... +2 282 °F) (depending on type) -40 ... +80 °C (-40 … +176 °F)
- Ingress protection IP54 (depending on connector type)
- Approvals ATEX, IECEx, CSA, cCSAus, NEPSI, EAC, EACEx
Documents
- Spec Sheet
- Manual
