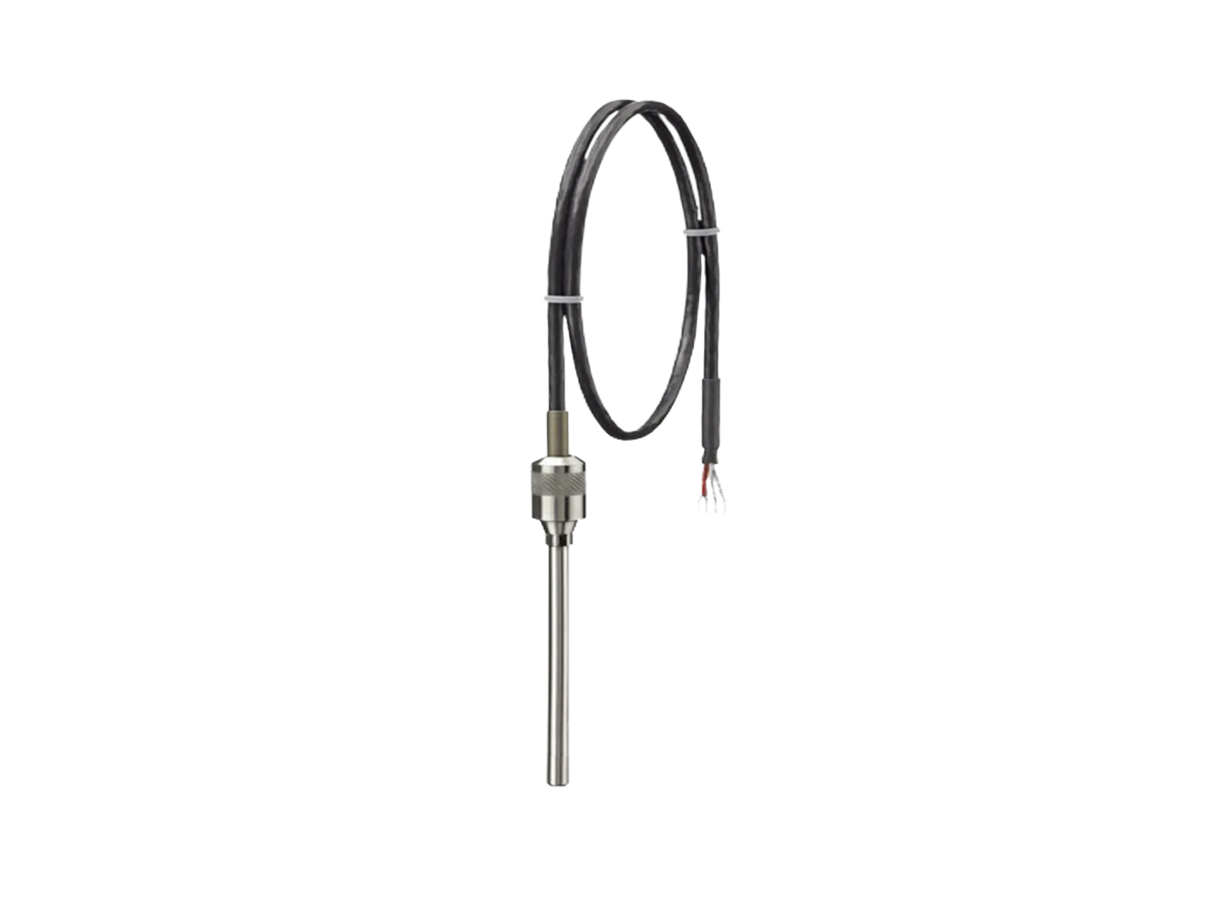

SITRANS TS100 temperature sensor line is based on mineral insulated cable (MIC)

The construction of the SITRANS TS100 temperature sensor line is based on mineral insulated cable (MIC) and supports a wide range of applications. Due to compression fittings or soldering nipples the installation is simple and flexible and is possible up to Zone 0 without the need of an additional thermowell.

• Simple mounting - Compression fittings or soldering nipples enable a fast commissioning
• Universal – Sensor line is designed to serve a wide range of applications
• Customizable – SITRANS TS100 is based on a modular platform offering variety
• Safe solution – Explosion protection by intrinsically safety Ex i (IS) even in Zone 0
• Certificates for major markets

Detail

• Output Sensor signal

• Max. operation temperature Pt 100 Basic: -50 .. .+400 °C (-58 … +752 °F)

• measuring point Pt 100 Extended: -196 ... +600 °C (-320.8 … +1112 °F)

• cable end Thermo couple -40 ... +1250 °C (-40 … 2282 °F) Depending on type
  -40° ... +80 °C (-40 … +176 °F)

• Ingress protection IP66 (between sensor and cable)

• Approvals ATEX, IECEx, cCSAus, EAC, NEPSI
