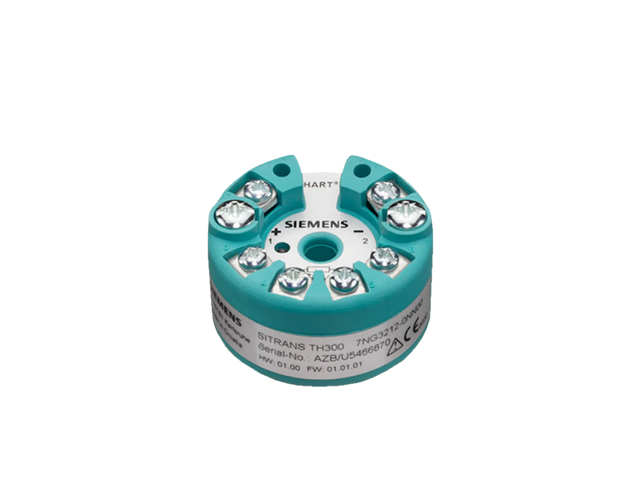

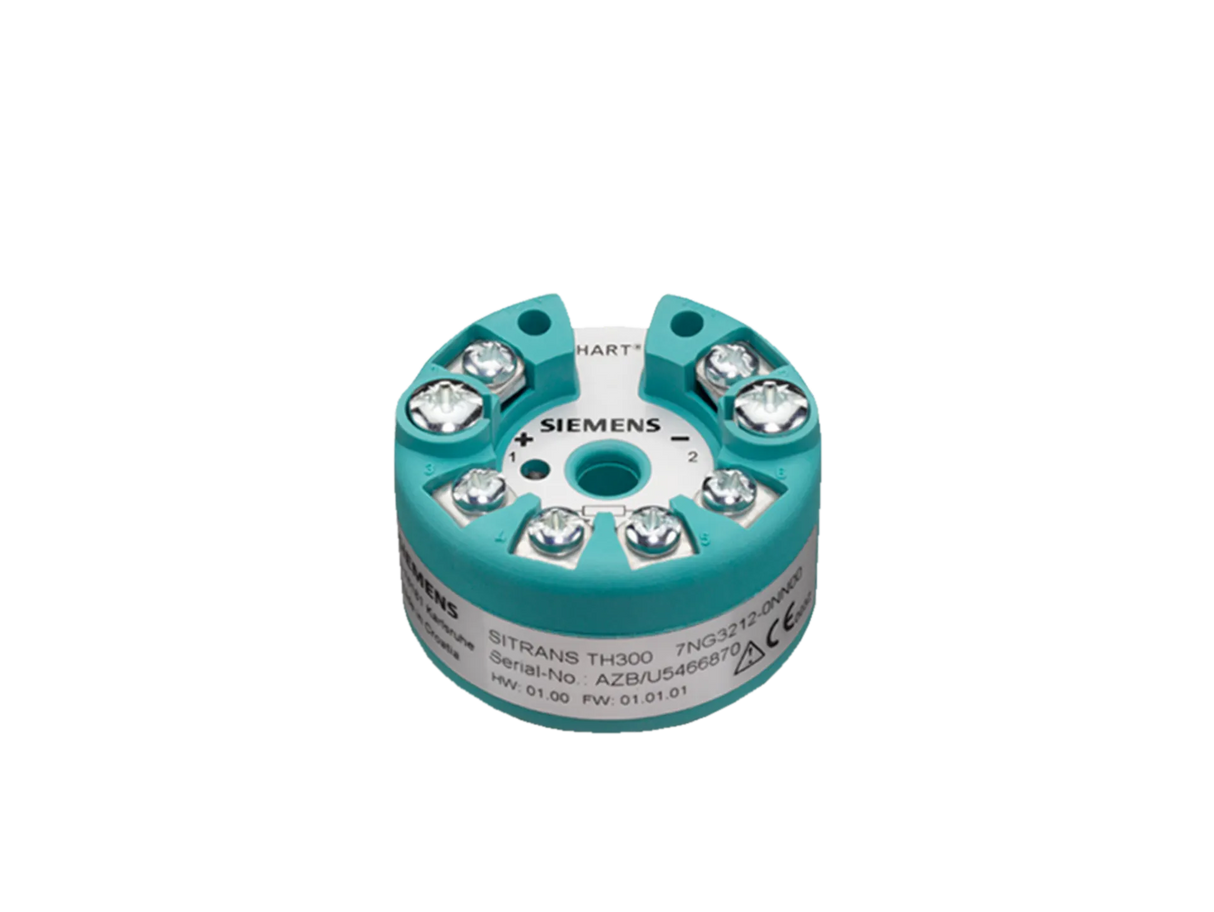

SITRANS TH300

SITRANS TH300
SITRANS TH300 with HART protocol is suitable for all common resistance thermometers and thermocouples, as well as for evaluating resistance sensors and millivolt signals. It is configured quickly and easily using SIMATIC PDM or a handheld and is particularly service-friendly: The value of the 4 - 20mA loop can be read directly and without signal interruption using a multimeter.

• Measures temperature with a linear output signal
• High accuracy across entire ambient temperature range
• Reduces plant noise
• Alarm signal for sensor break or short-circuit according to NAMUR 43
• Electro magnetic compatibility (EMC) according to DIN EN 61326 and NE21
• Save expensive compensation cables with internal reference junction
• Galvanic insulation for accuracy and safety in thermocouple applications
• Single- or dual-point trim
• Custom characteristic curve for application of non-standard sensors
• Difference- and average measurement
• Extensive diagnosis: e.g. drag indicator and time meter
• Set of output current for simulation
• Explosion protected variants for US, Canada and Europe
• Rugged design, fully potted electronics

Detail

• Input: Resistance thermometers, Thermocouples, Resistance-type sensors, DC sources
• Output: 4 ... 20 mA, HART

Documents

• Spec Sheet
• Manual
