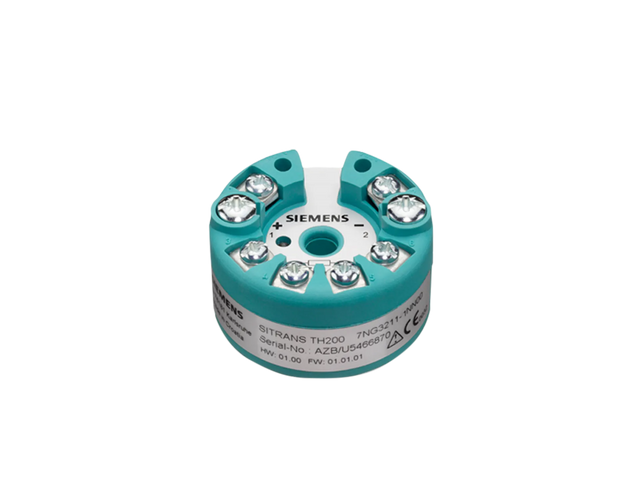

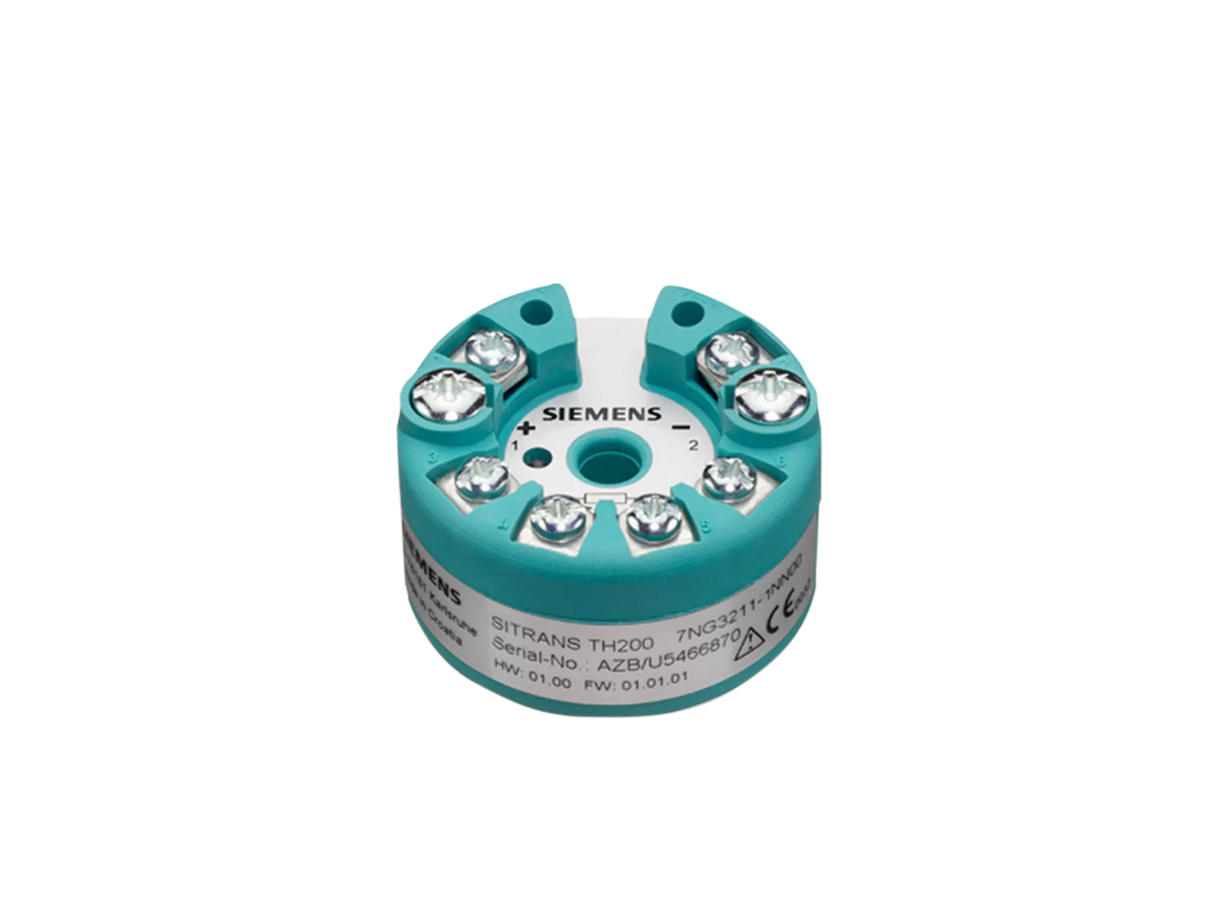

SITRANS TH200

SITRANS TH200
SITRANS TH200 is suitable for all common resistance thermometers and thermocouples. It is programmed quickly and easily using a special modem and the downloadable SIPROM T software. With a multimeter, the value of the 4 - 20mA loop can be read directly and without signal interruption. Thanks to the red/green diagnostics LED, you can keep an eye on the measured values ​​at all times.

• Measures temperature with a linear output signal
• High accuracy across entire ambient temperature range
• Reduces plant noise
• Alarm signal for sensor break or short-circuit according to NAMUR 43
• Electro magnetic compatibility (EMC) according to DIN EN 61326 and NE21
• Saves expensive compensation cables with its internal reference junction
• Galvanic insulation for accuracy and safety in thermocouple applications
• Single- or dual-point trim
• Custom characteristic curve for application of non-standard sensors
• Difference- and average- measurement
• Explosion protected variants for US, Canada and Europe
• Rugged design, fully potted electronics

Detail

• Input: Resistance thermometers, thermocouples, resistance-type sensors, DC sources
• Output: 4 ... 20 mA

Documents

• Spec Sheet
• Manual
