SITRANS TF

SITRANS TF

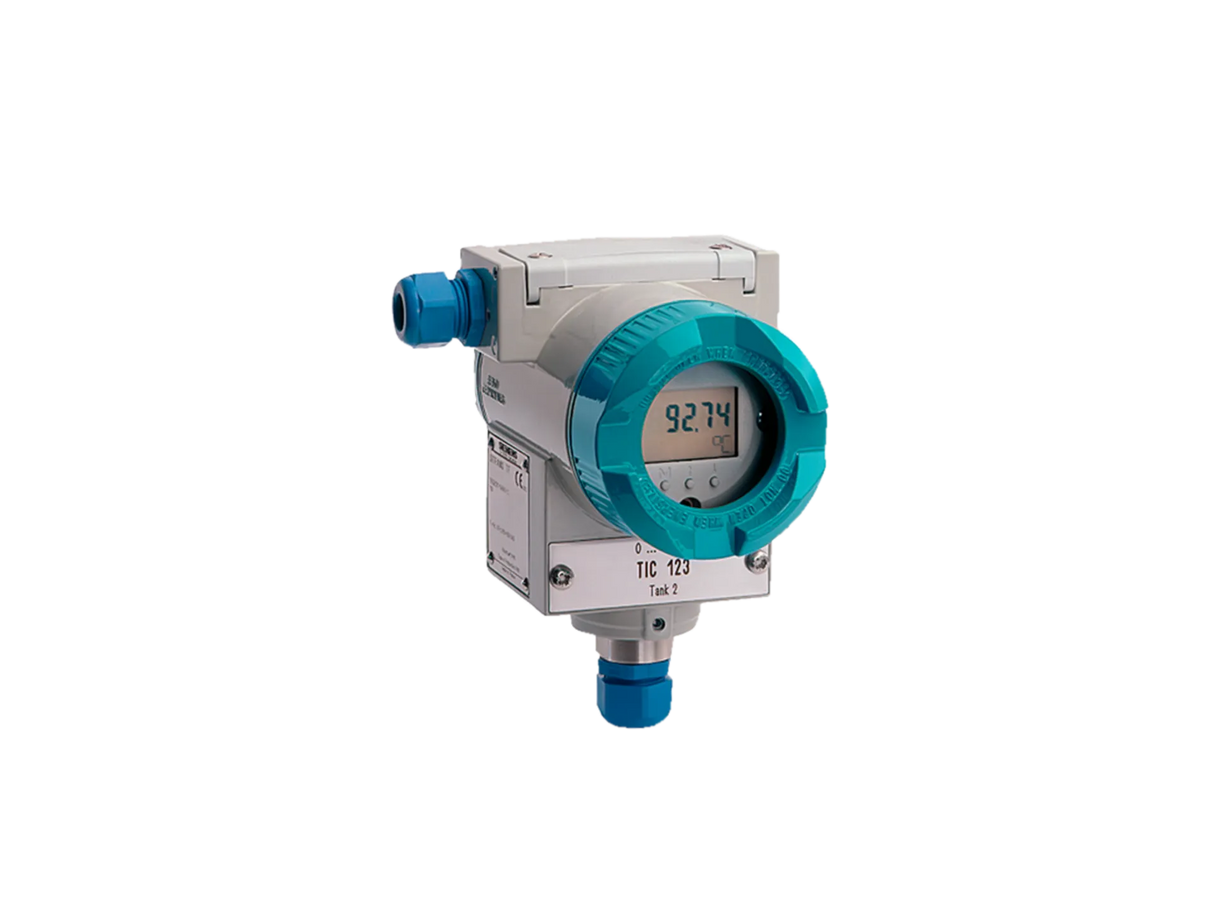

SITRANS TF is an IP67 field transmitter for heavy industrial use. It transforms resistance thermometers, thermocouples, Ohm and mV signals into a load independent DC current corresponding to sensor characteristic or a digital signal according Fieldbus standard Profibus PA or Foundation Fieldbus.

• Flexible use - Local sensing of measured values over digital display; version without transmitter
• Rugged two-chamber enclosure in die-cast aluminium or stainless steel
• Easy handling - Test terminals for direct read-out of the output signal without breaking the current loop
• Unobstructed operation – remote mounted sensor prevents transmitter from heating up, immune against vibrations and oscillations thanks to long neck tubes and protection pipes

Detail

• Input: Resistance thermometers, thermocouples, resistance-type sensors, DC sources
• Output Versions for:
  - 4 ... 20 mA
  - 4...20 mA with HART
  - Profibus PA or Foundation Fieldbus
• Approvals: ATEX
• Certificates: IECEx, EAC Ex (GOST), INMETRO, NEPSI, KOSHA
• Degree of protection: IP67

Documents

• Spec Sheet
• Manual
