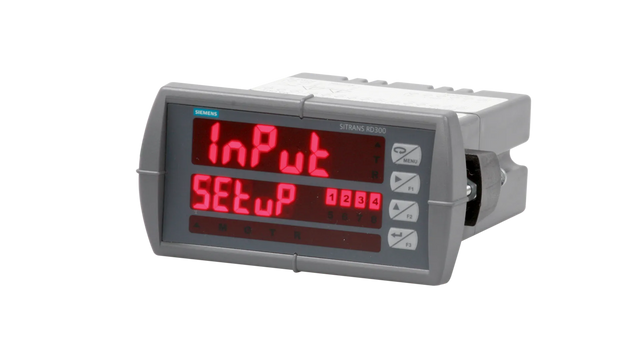

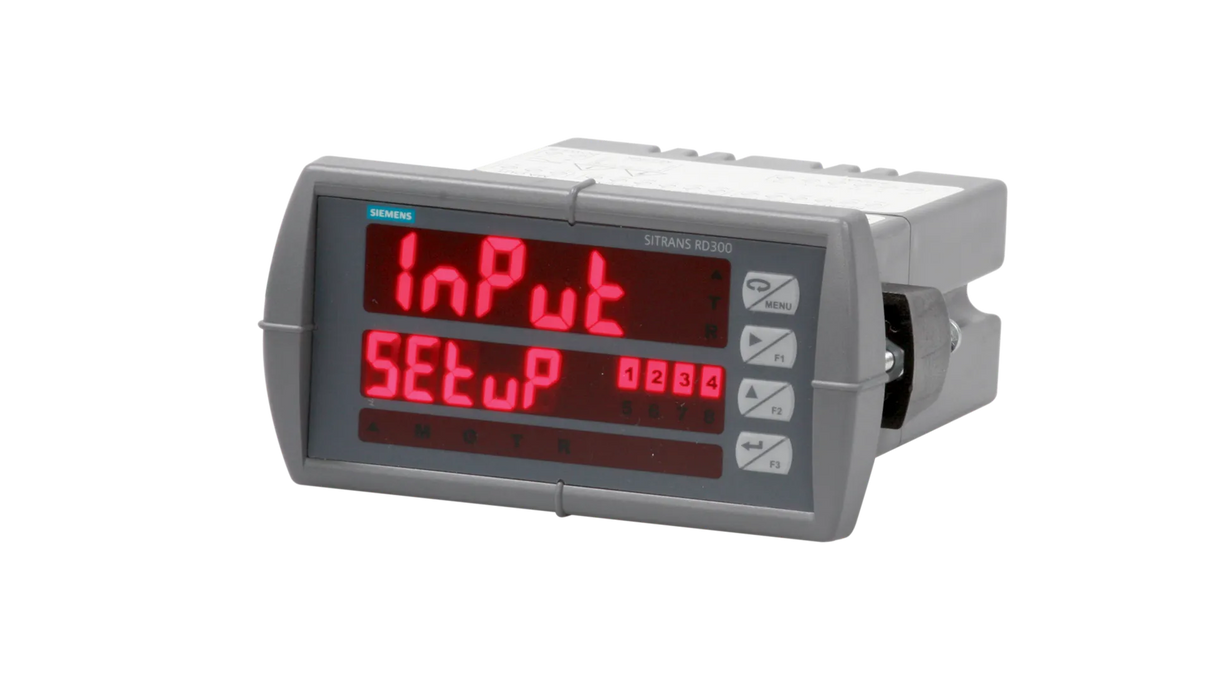

SITRANS RD300

0.00 ฿

Highlight title

Text to highlight a key feature of your product

Supplementary Components
Taking your instrumentation’s functionality to the next level – supplementary components enhance your operations through seamless wireless communications, remote displays, and remote monitoring solutions. Data capturing and alarming anywhere, at anytime? Remote monitoring is your answer.

  • Easy setup and programming via front panel buttons or using free RD software available via USB drive
  • Display readable in sunlight in varying intensities
  • Single or dual 24 V DC transmitter power supply
  • Serial communication using built-in protocol or Modbus RTU
  • Supports up to 8 relays and 8 digital I/O for process control and alarming
  • 32-Point linearization, square root or exponential linearization
  • Multi-pump alternation control
  • 9-digit totalizer with total overflow feature
  • Large dual-line, 6-digit display
  • Configure, monitor, and datalog from a PC
  • Dual-input option with math functions

    Detail

    • Input Types: 4 to 20 mA, 0 to 10 V DC
    • Display:
      - Main display: 0.6 inch (15 mm) high, red LEDs
      - Second display: 0.46 inch (12 mm) high, red LEDs,
      - 6-digits: each (-99 999 to 999 999)
    • Operating Temperature: -40 to 65 °C (-40 to 149 °F)
    • Options:
      - Up to 8 relays and 8 digital I/O for process control and alarming
      - Dual-Input option with math functions
      - Pump alternation control
      - 4 to 20 mA Analog output
      - NEMA 4 and 4X field enclosures
    • Tank farms, pump alternation control, local or remote display of level, flow, pressure and weighing instrument values, PC monitoring and data logging with RD Software
