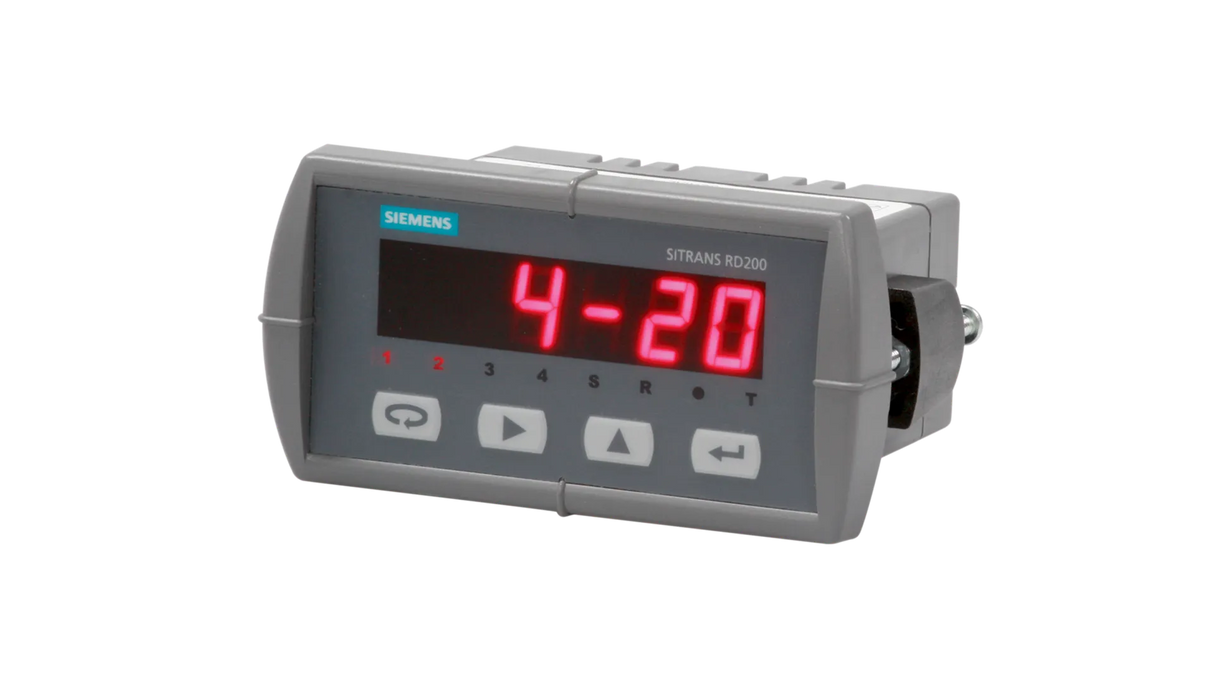

SITRANS RD200

Supplementary Components
Taking your instrumentation’s functionality to the next level – supplementary components enhance your operations through seamless wireless communications, remote displays, and remote monitoring solutions. Data capturing and alarming anywhere, at anytime? Remote monitoring is your answer.

• Easy setup and programming via front panel buttons or remotely using RD software
• Display readable in sunlight in varying intensities
• Single or dual 24 V DC transmitter power supply
• Serial communication using built in protocol or Modbus RTU
• Optional relays for alarm indication or process control applications
• Linear or square root function supported
• Meter Copy feature to reduce setup time, cost, and errors
• RD software supports remote configuration, monitoring, and logging
• 2X option for 30.5 mm (1.2 inch) high, red LED display

Detail

• Input Types: Universal current, voltage, RTD, thermocouple
• Display:
  - 14 mm (0.56 inch) high LED
  - 2 X option for 30.5 mm (1.2 inch) high, red LED
  - Numeric range from -1 999 to 9 999
  - Eight intensity levels
• Operating Temperature: -40 to 65 °C (-40 to 149 °F)
• Options:
  - Large display for improved visibility at greater distance
  - Relays for alarm indication or process control applications
  - Pump alternation control
  - 4 to 20 mA Analog output
  - NEMA 4 and 4X field enclosures
• Tank farms, pump alternation control, local or remote display of level, temperature, flow, pressure and weighing instrument values, PC monitoring and data logging with RD Software
