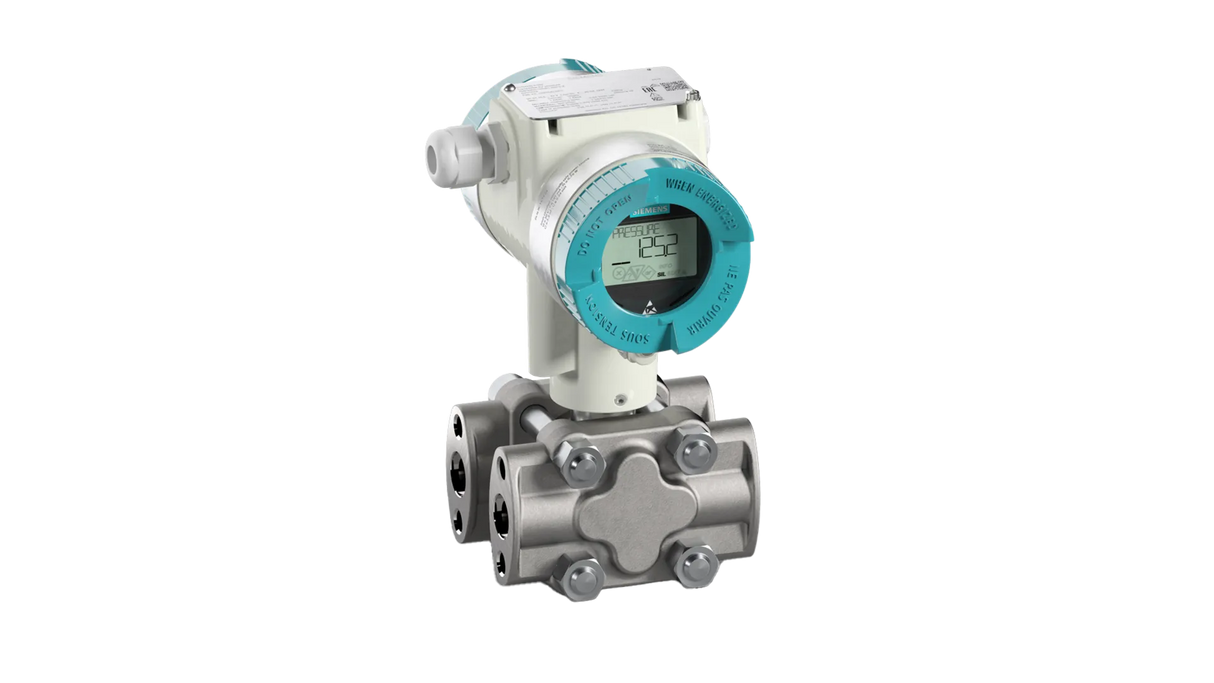

SITRANS P320/420

Hydrostatic level measurement
Siemens offers a comprehensive product portfolio for hydrostatic level measurement -whether by direct measurement or remote seals, whether on open or closed containers. Our SITRANS P pressure/differential pressure transmitters are extremely resistant to chemical and mechanical loads as well as electromagnetic interference and are commonly used in the chemical and petrochemical industries.

• Reduced commissioning time due to remote safety handling
• Suitable for harsh conditions due to robust materials
• User-friendly due to clear and large display and diagnostic icons acc. to NAMUR NE107 and a quick start wizard
• Maintenance cost reduction due to proof test interval up to 15 years
• Fast reaction and optimized processes due to reduced response time

Detail

• Accuracy: 0,065 % (SITRANS P320), 0,04 % (SITRANS P420)
• Response time: down to 105 ms
• Long-Term Stability: ≤ 0.125 % / 5 years
• Measuring cells: from 20 mbar to 700 bar
• Max. Turndown: 100:1
• Measured medium temperature: -40 °C to +100 °C
• Certificates/ Approvals: ATEX, IEC EX, FM, CSA, NEPSI and others
• Developed according to IEC 61508 standards
• HART7 communication
• Communication: 4 … 20 mA / HART, PROFIBUS PA, FOUNDATION Fieldbus
• Diaphragm materials: Stainless steel, Hastelloy, Tantalum, Monel, Go
