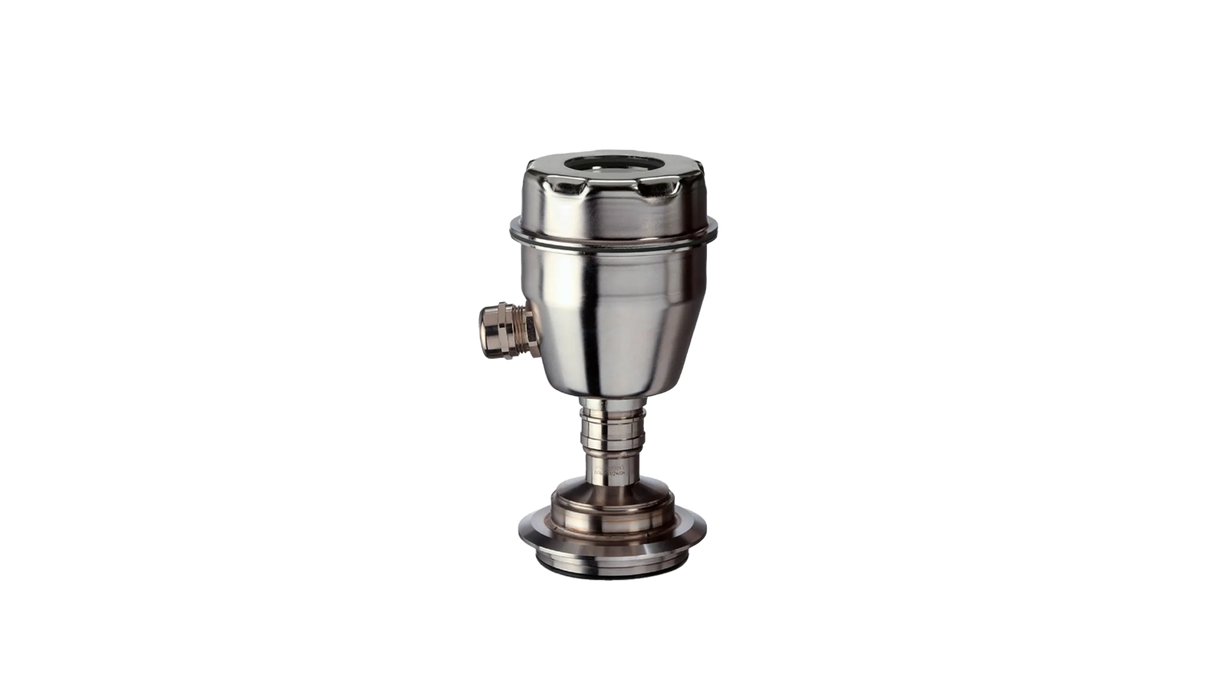

SITRANS P300 offers measuring precision and ruggedness

The SITRANS P300 offers measuring precision and ruggedness. Its stainless steel housing with laser-printed nameplate, together with a wide range of hygienic process connections, mean that it is highly suitable for use in the food & beverages industry as well as for pharmaceutical processes.

• With hygiene (EHEDG, 3A), material and calibration certificates eminently suited to the food and beverage and pharmaceutical industry
• Especially suitable for degrees of protection to IP68 and IP69K, CIP/SIP cleaning, and highly viscos measuring media
• Broad application opportunities by measurement cells for gauge and absolute pressure
• Easy cleaning by measurement cells with flush mounted diaphragm
• Optimized process control by extended simulations and diagnostic

Detail

• Accuracy ≤ 0,075 %
• Long term stability ≤ 0.25 % / 60 months
• Measuring range 0 - 10 mbar (0 - 4 inchH2O) to
• 0 - 400 bar (0 - 5800 psi)
• Communication HART or PROFIBUS PA

Documents

• Spec Sheet
• Manual
