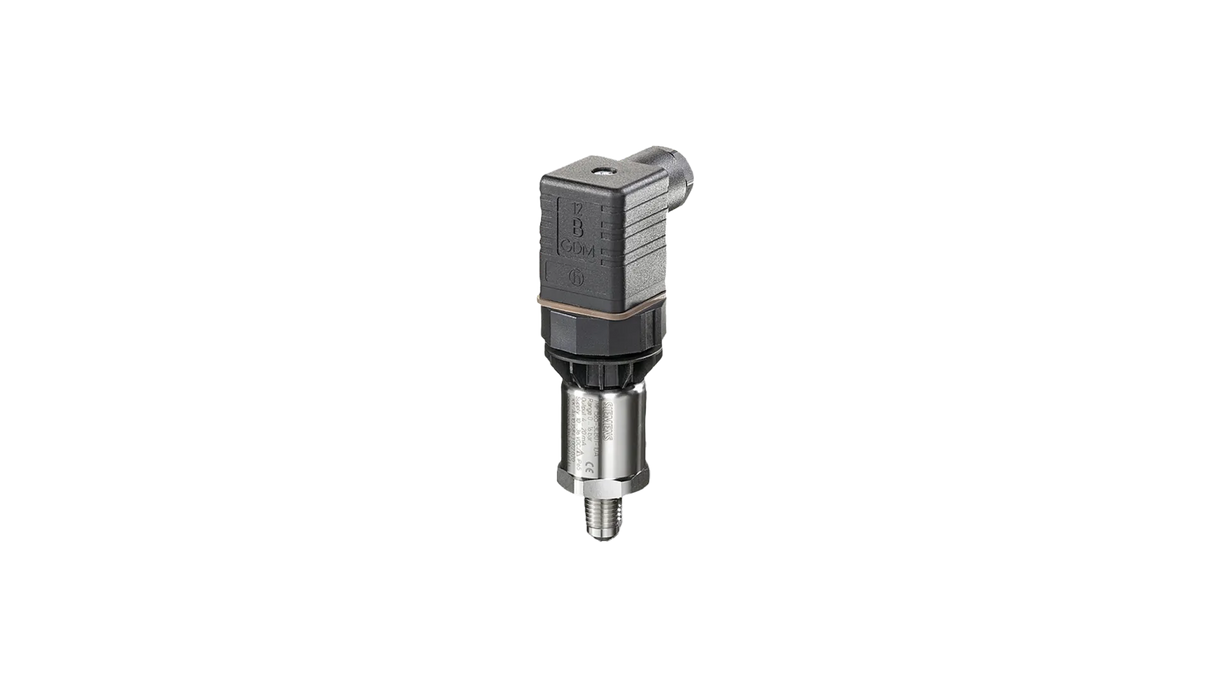

SITRANS P200/P210/P220 compact single-range transmitters for measuring absolute and gauge pressure

SITRANS P200, P210 and P220 are compact single-range transmitters for measuring absolute and gauge pressure. These series use two types of pressure sensors: two stainless steel sensors and one ceramic diaphragm sensor. This makes it easy to measure process, absolute and hydrostatic pressure. The determined pressure is optionally converted into a 4-20 mA or 0-10 V signal.

• Robust by rugged stainless-steel enclosure and compact design
• High overload capacity
• Suited for a broad range of application: for aggressive and non-aggressive media as well as for measuring the pressure of liquids, gases and vapors

Detail

• Nonlinearity ≤ 0,25 %
• Long-term stability ≤ 0,25% / 12 Monate
• Measuring range SITRANS P200: 1 bar to 60 bar gauge
• 0,6 bar to 16 bar absolute
• SITRANS P210: 100 mbar to 600 mbar gauge
• SITRANS P220: 2,5 bar to 1000 bar gauge
