SITRANS LT500

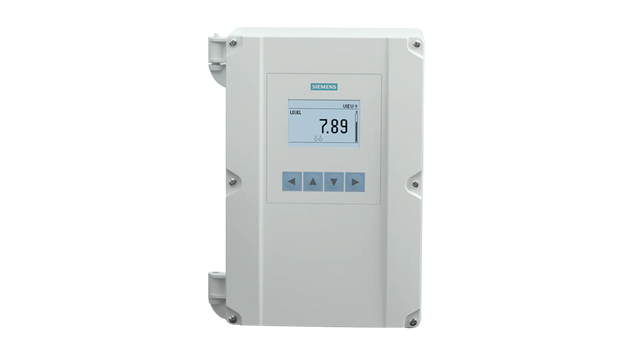

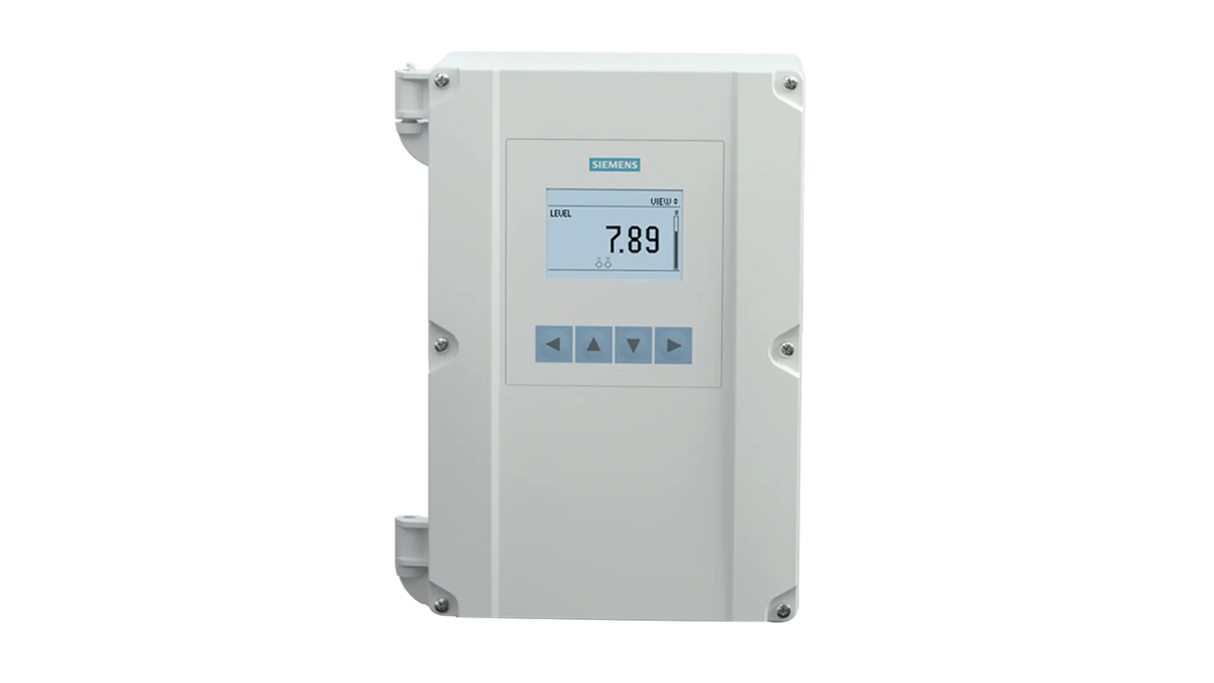

SITRANS LT500 controller
SITRANS LT500 is the next evolution of level, flow, and pump controllers for radar and ultrasonic transmitters, transducers – or any 2-wire 4-20 mA device. It is the first choice for radar sensor measurements at 80 GHz and features single and dual point measurements, 6 relays, and Modbus RTU, HART, PROFIBUS DP, PROFIBUS PA, PROFINET

• No specialists required – Quick Start Wizards with 6 different display views and optional view information
• Precise measurement with multiple options for liquids or solids using various technologies to meet the application needs - compatible with SITRANS LR110/120, SITRANS Probe LU240, and generic mA inputs
• Flexible setup and ease of configuration saves time – 6 fully programmable relays rated at 5A for pump control and alarming
• Data recording for easy analysis and potential process optimization – datalogging, parameter backup, and copy configuration on micro memory card
• Immediate status and diagnostic data to your system ensuring improved process quality and intelligent, faster data for operations – digitalization ready with HART, Modbus RTU, PROFIBUS DP, PROFIBUS PA or PROFINET options and over 175 diagnostics

Detail

• Measurement types: Level, distance, space, volume, differential, average, head and Open Channel Flow
• Measuring range: Sensor based with SITRANS LR110/LR120 and SITRANS Probe LU240
• Communications: Up to three 4 to 20 mA outputs. Fieldbus option cards: Modbus RTU, HART, PROFIBUS DP, PROFIBUS PA, PROFINET
• Languages: EN, DE, FR, ES, CN, RU, PT, IT, JP, SW, DU, DA, FI, PO
• 2 x 4 ... 20 mA
• + 1 x 4-20 mA output with HART card
• 6 x relay
• Fieldbus
