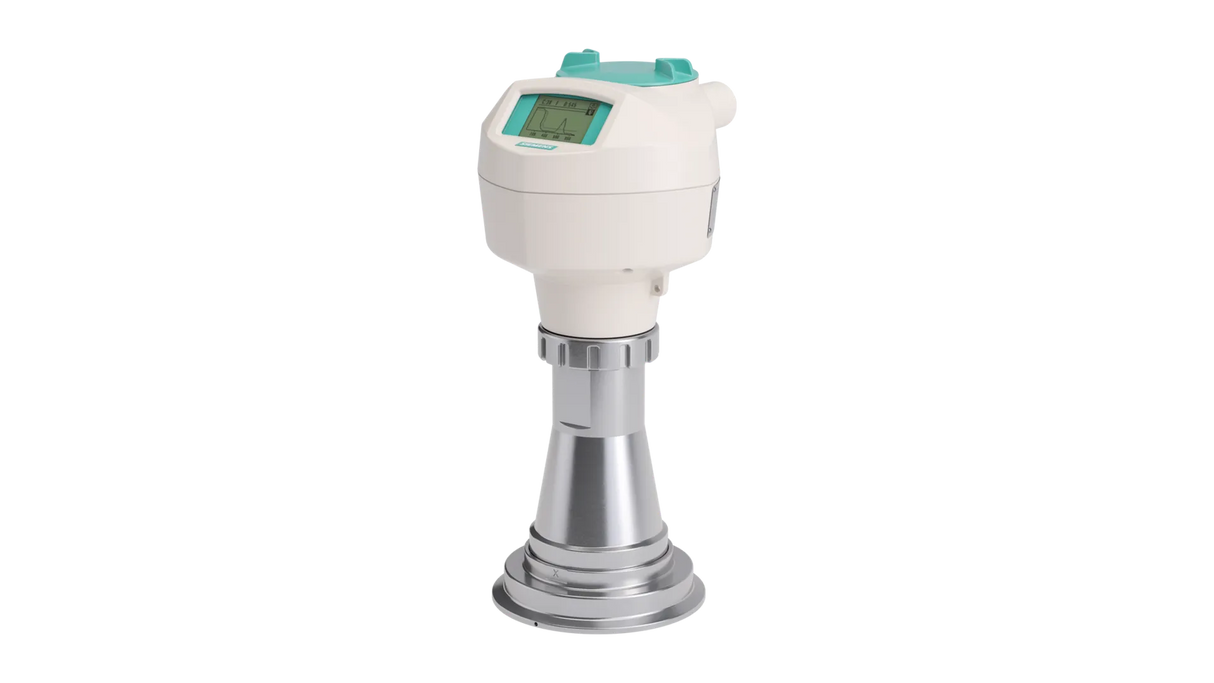

SITRANS LR250 HEA (hygienic encapsulated antenna)

Radar level measurement
Real intelligence built on experience! It’s time to ask: what does a level device’s experience offer your operations? What makes your job easier? Manage materials better? Optimize inventory ordering? And, increase efficiency and save you money? Our radar transmitters bring answers to these challenges, based on signal processing experience gained from over a million level instruments worldwide.

• The hygienic hero: HEA hygienic encapsulated antenna
• Hygienic antenna suitable for dairy, breweries, and pharmaceutical industries
• EHEDG and 3A approved design is easy to clean
• 316L stainless steel and TFMTM PTFE wetted surfaces suitable for clean-in-place operations
• Widest range of process connections

Detail

• 7ML5433
• Range: 20 m (66 ft)
• Process temperatures : 170 °C (338 °F)
• Wetted materials: TFMTM PTFE
• Process connection types & sizes: 1-1/2", 2" and 3" threaded. flanges 2", 3", 4", 6" Class 150 and 300 ASME B16.5, DN50, 80, 100, 150 PN10/16 and PN40
• Approvals: CSA, FM, ATEX, IECEX, NEPSI, INMETRO,Ex-proof, Intrinsically safe, Marine

Documents

• Spec Sheet
• Manual
