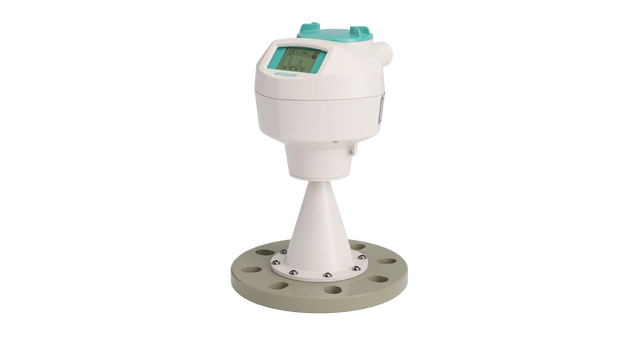

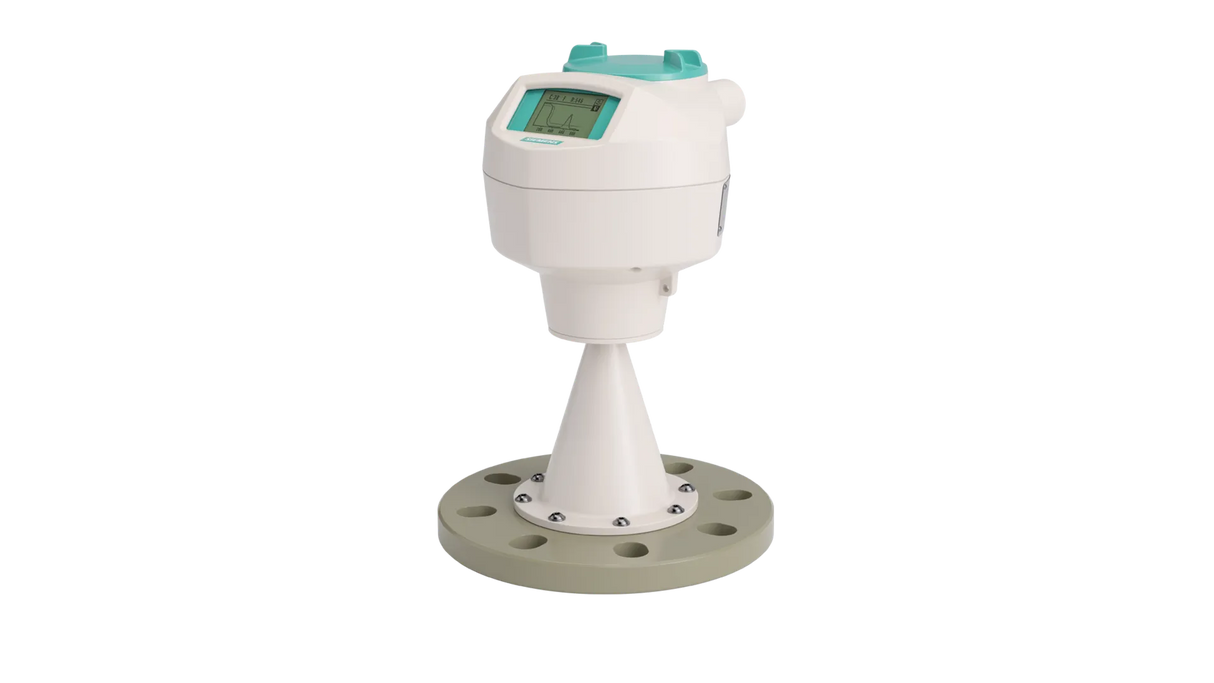

SITRANS LR250 PLA (polypropylene lens antenna)

SITRANS LR250
SITRANS LR250’s complete range of antennas and process connections makes this transmitter suitable for nearly any liquids application. Built to last, these antennas give you liquid level flexibility for inventory and process vessels.

• The all-rounder: Polypropylene lens antenna
• Excels in most industrial applications at a budget-conscious price point
• Lightweight polyester powder-coated horn yields a very high signal
• Highly corrosion-resistance polypropylene and FKM wetted materials for use in a wide range of chemicals with nominal pressure and temperature
• Universal polymeric flanges offer exceptional value and fit DIN, ASME and JIS bolt patterns

Detail

• 7ML54315
• Range: 20 m (66 ft)
• Process temperatures : 80 °C (176 °F)
• Wetted materials: polypropylene, FKM
• Process connection types & sizes: universal flanges 3"/80mm, 4"/100mm, 6"/150mm
• Approvals: CSA, FM, ATEX, IECEX, INMETRO, NEPSI, Ex-proof, Intrinsically safe

Documents

• Spec Sheet
• Manual
