SITRANS LR200

SITRANS LR200

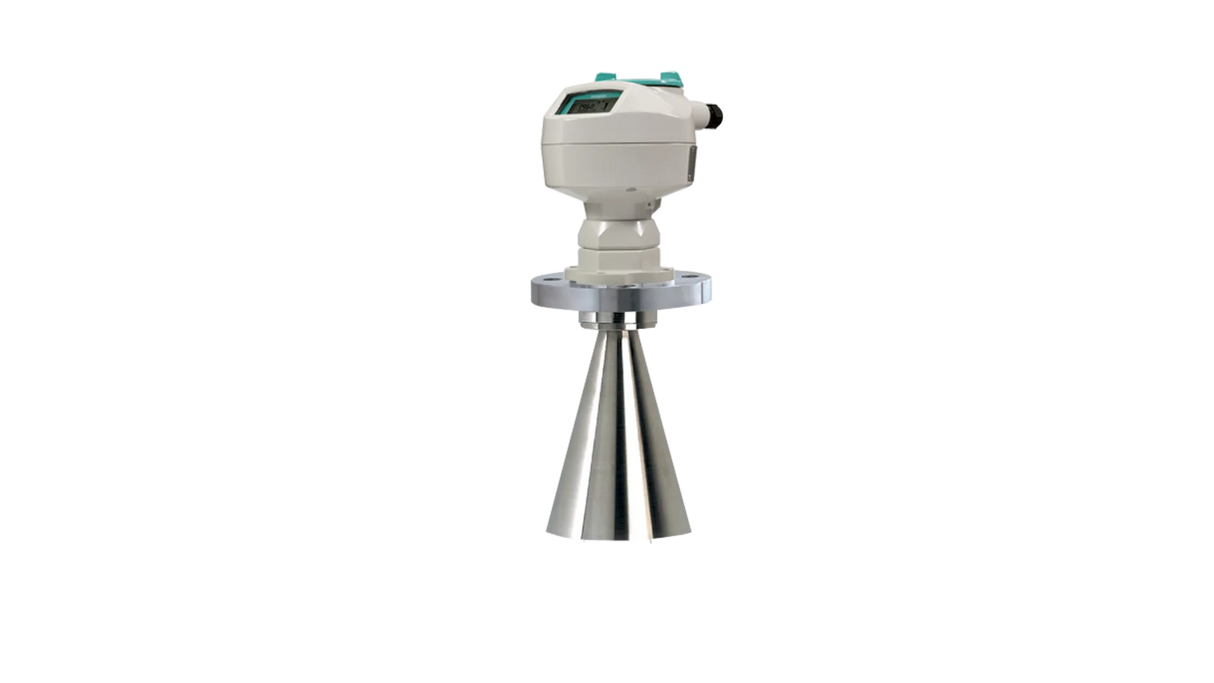

SITRANS LR200 is a 2-wire, 6 GHz pulse radar level transmitter for extreme process conditions in process vessels up to 20 meters (66 ft). This technology is most suited for applications where there is severe turbulence or material buildup.

• Easy setup with graphical HMI with Quick Start Wizard or remote access via EDD or DTM
• Intrinsically safe infrared handheld programmer for local interface
• Field proven with rugged encapsulated enclosure based on 10+ years of experience
• Reliable readings with Process Intelligence advanced echo processing for reliable performance
• Ready for digitalization with HART or PROFIBUS PA for connectivity

Detail

• Range: 20 m (66 ft)
• Threaded: 2" NPT, BSPT, BSPP
• Flanged 2", 3", 4", 6" Class 150; DN50, 80, 100, 150, PN10/16
• Wetted Parts: 316L stainless steel, PTFE
• Process Temperature: -40 to 200 °C (-40 to 392 °F)
• Process Pressure: Up to 40 bar g (580 psi g)
• Accuracy: 10 mm (0.4 inch)
• Communications: mA/HART, PROFIBUS PA
• Typical Applications: Process vessels with extreme turbulence, bitumen, stilling wells
