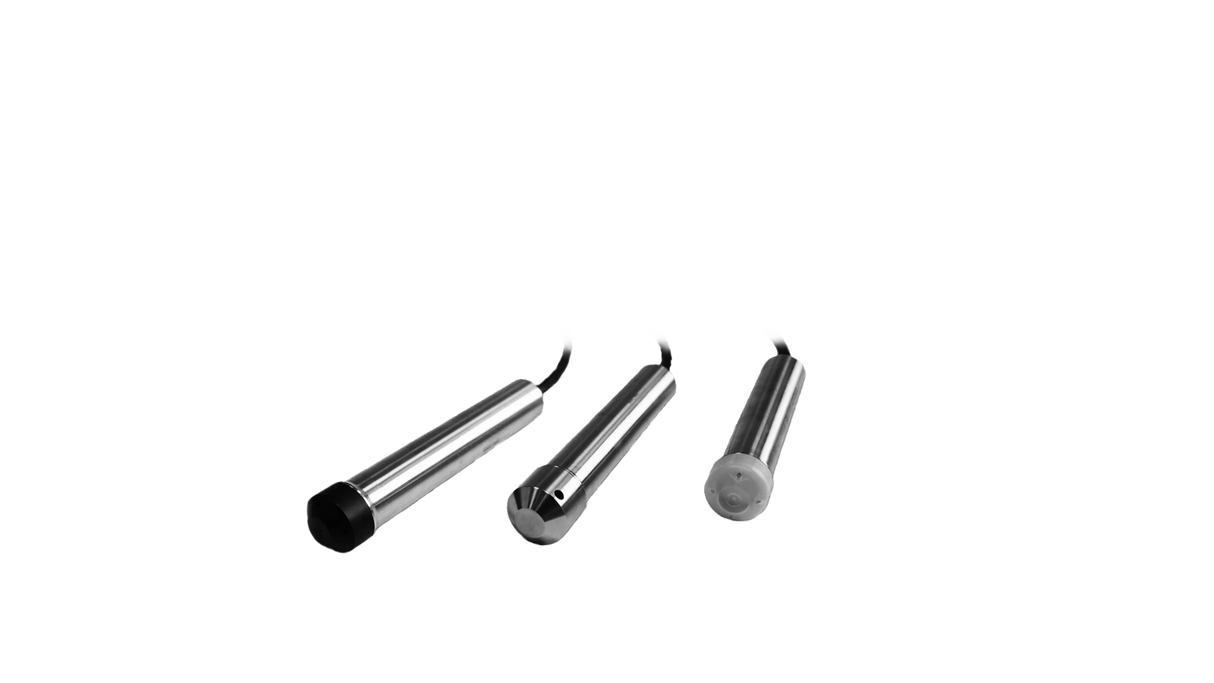

SITRANS LH300 hydrostatic level measurement with protective caps made of PPE

SITRANS LH300 is a well probe for hydrostatic level measurement with protective caps made of PPE, stainless steel or ETFE. The transmitter converts the pressure into a standard 4 - 20 mA signal. SITRANS LH300 is suitable for tanks, channels and dams, as well as for drinking water systems thanks to the stainless steel housing and piezoresistive sensor with ceramic membrane.

• Easy installation and use due to compact design and corrosion-resistant material
• Safe application due to vent pipe in connection cable to prevent condensate formation
• Long service life due to protection of the measuring diaphragm against external influences by protective cap
• Standard measuring set: Transmitter, cable hanger, junction box

Detail

• Accuracy 0.15 %
• Long-term stability 0.15 % / 12 months
• Measuring range 0 – 1 mH2O to 0 – 40 mH2O
• Housing 316L stainless steel housing (Ø 29 mm), IP68 rated
• Diaphragm 99,6 % ceramic
• Cable PE sheathing; Ø 6 mm with vent pipe
• Cable length standard 5, 10, 20, 30 or 50 m, special lengths up to 1000 m are possible
• Certificates/ approvals Explosion-protected version according to IEC Ex and ATEX

Documents

• Spec Sheet
• Manual
