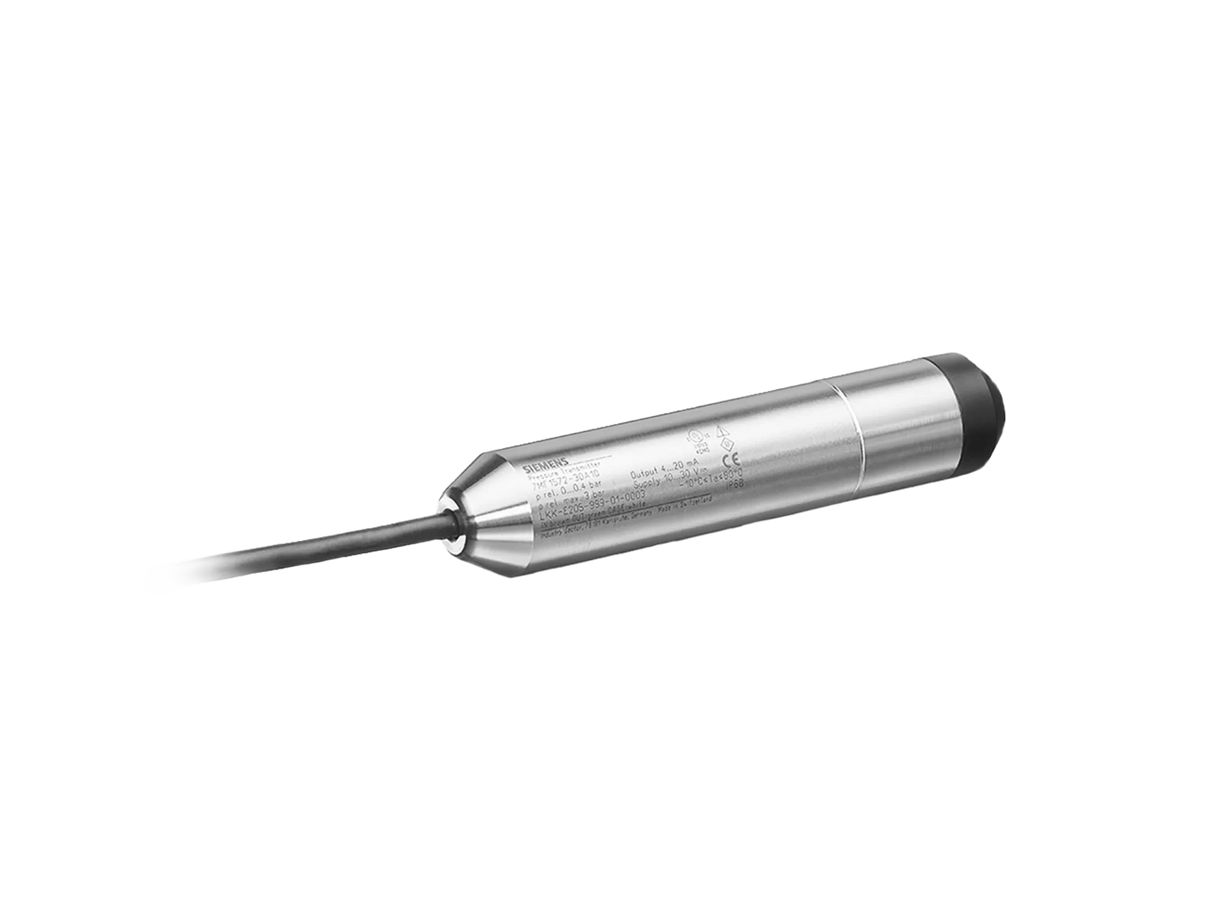

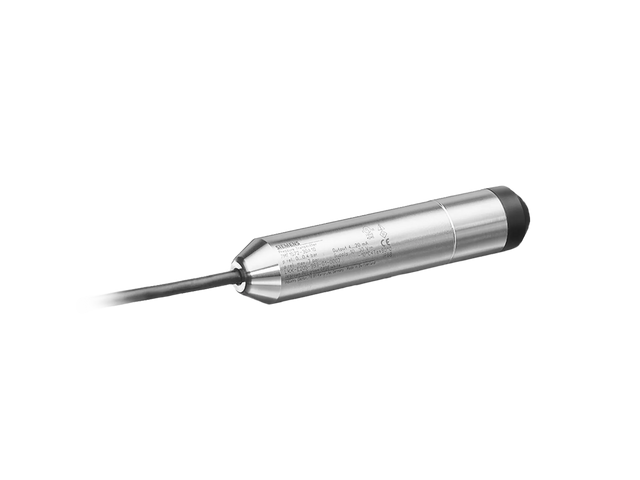

SITRANS LH100

Hydrostatic level measurement
Siemens offers a comprehensive product portfolio for hydrostatic level measurement -whether by direct measurement or remote seals, whether on open or closed containers. Our SITRANS P pressure/differential pressure transmitters are extremely resistant to chemical and mechanical loads as well as electromagnetic interference and are commonly used in the chemical and petrochemical industries.

• Easy installation and use due to compact design and corrosion-resistant material
• Safe application due to vent pipe in connection cable to prevent condensate formation
• Long service life due to protection of the measuring diaphragm against external influences by protective cap

Detail

• Accuracy: 0,3 %
• Long-term stability: 0,25 % / 12 months
• Measuring range: 0 – 3 mH2O to 0 – 20 mH2O
• Housing: 316L stainless steel housing (Ø 23.4 mm), IP68 rated
• Cable: PE sheathing; Ø 6 mm with vent pipe
• Cable length: standard 10, 20, or 30 m, special lengths up to 50 m are possible
• Certificates/ approvals: Explosion-protected version according to IEC Ex and ATEX
