SITRANS LH100 level-proportional hydrostatic pressure

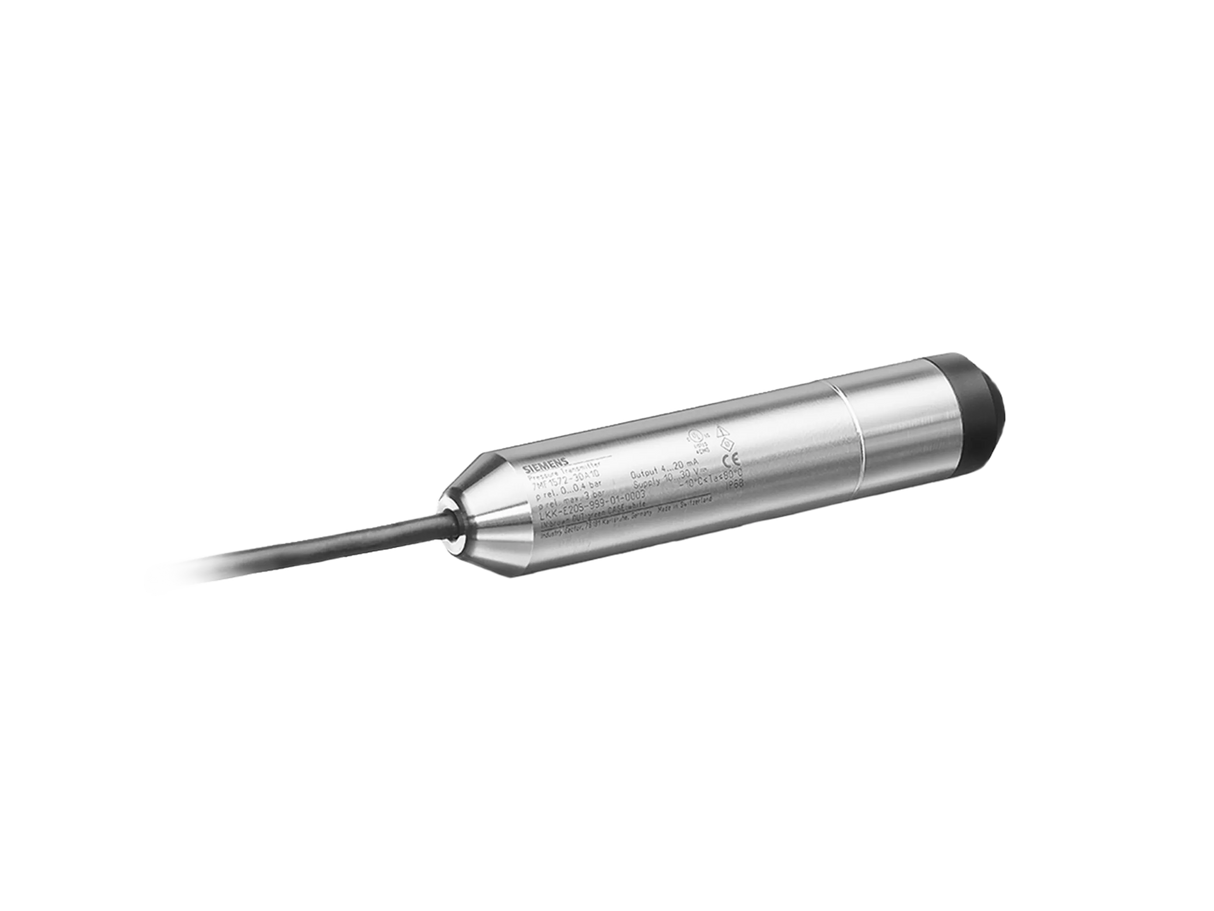

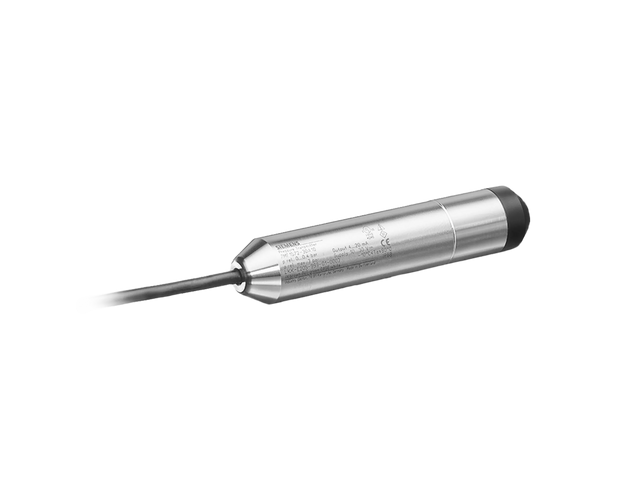

The pressure transmitter SITRANS LH100 is a well probe and converts the level-proportional hydrostatic pressure into a standard signal of 4 - 20 mA. It measures levels in basins, containers, canals and dams. It has a stainless steel housing and a piezoresistive sensor with a ceramic membrane and is available for a wide range of measuring ranges and, if required, with explosion-protection.

• Easy installation and use due to compact design and corrosion-resistant material
• Safe application due to vent pipe in connection cable to prevent condensate formation
• Long service life due to protection of the measuring diaphragm against external influences by protective cap
• Standard measuring set: Transmitter, cable hanger, junction box

Detail

• Accuracy 0,3 %
• Long-term stability 0,25 % / 12 months
• Measuring range 0 – 3 mH2O to 0 – 20 mH2O
• Housing 316L stainless steel housing (Ø 23.4 mm), IP68 rated
• Cable PE sheathing; Ø 6 mm with vent pipe
• Cable length standard 10, 20, or 30 m, special lengths up to 50 m are possible
• Certificates/ approvals Explosion-protected version according to IEC Ex and ATEX
