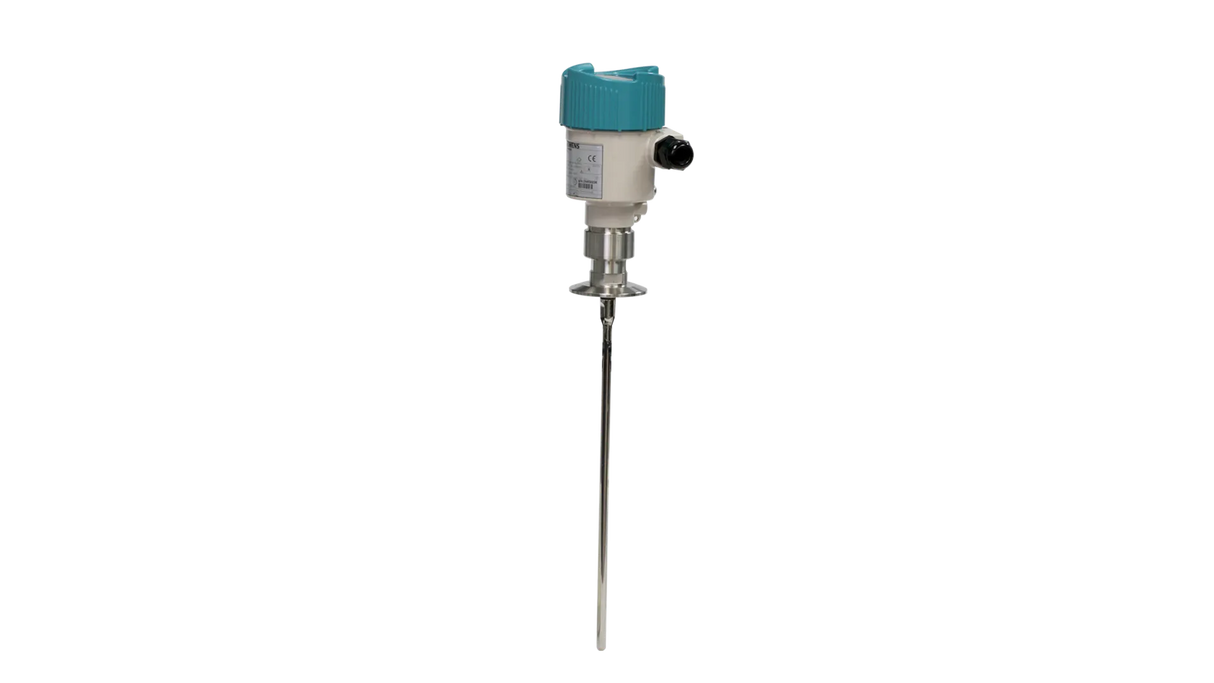

SITRANS LG240

Guided wave radar level measurement
SITRANS LG series are guided wave radar transmitters for continuous level, level and interface, and volume measurements of liquids and solids. They are unaffected by change in process conditions, high temperatures and pressures, and steam. Quick and easy setup with local four-button programming and menu-driven quick start wizard gets you operational in minutes, saving you time and money.

• Specifically designed for your hygienic and aggressive chemical application requirements.
• Complete with a wide range of probe materials.
• High accuracy to ± 2 mm
• Advanced diagnostics available for high degree of safety
• Simple menu-driven display offers ease of setup
• Large range of options offers reliability in most continuous level measurement applications
• Ease of maintenance through module design and field replaceable and adjustable probe options
• Highly immune to buildup using auto learn function
• Ability to measure in loss of echo situations with probe end tracking
• Convenient access using USB and remote displays

Detail

• Range: 0.3 to 75 m (1 to 246 ft)
• Threaded from ¾"
• Flanged from DN 25, ASME from 1"
• Hygienic fittings
• Process Temperature: -196 to 450 °C (-321 to 842 °F)
• Process Pressure: -1 to 400 bar (-100 to 40 000 kPa)
• Accuracy: Starting at ±2 mm (0.08")
• Communications: 4 to 20 mA/HART, PROFIBUS, Modbus, and FOUNDATION Fieldbus
• Typical Applications: Level and interface in liquids, and level in solids applications. Ideal for oil and gas, food, pharmaceutical and general industries
