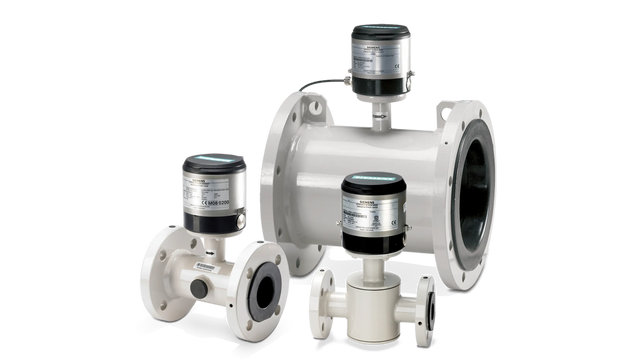

SITRANS FM MAG 8000

0.00 ฿

Highlight title

Text to highlight a key feature of your product

The SITRANS FM MAG 8000 portfolio of battery-operated flowmeters gives you the flexibility to install a reliable water flowmeter virtually anywhere without sacrificing accuracy or performance.

The SITRANS FM MAG 8000 portfolio features a basic version for general water applications or an advanced version for additional functionality, network, and consumption performance (profiling).

An optional built-in IIoT Wireless Communication Module is available for remote reading of comprehensive measurement data covered by a LTE-M or NB-IoT. Measurement data, configuration, and the built-in verification from the MAG 8000 are made accessible via the new Web Application.

          Detail

          • Nominal size From DN 25 – 1200 (1" to 48")
            • From DN 50 – 600 (1” – 24”) for CT version under the MI001 and OIML R49 Class I & II
          • Accuracy 0.2% ± 2mm/s and 0.4% ± 2mm/s
          • Input / output 2 passive outputs
          • Communication Local Modbus RTU IrDA (Infrared comm.), Modbus RS 232/485, Radio Encoder (Sensus Protocol), 4G LTE M/NB IoT
          • Power supply Internal or external battery pack
            • 12-24 V AC/DC and 115-230 V AC
          • Operating pressure Max. 40 bar (Max. 580 psi)
          • Ambient temperature From -20 to 60 °C (-4 to 140 °F)
          • Medium temperature From 0 to 70 °C (32 to 158 °F)
            • From 0.1 to 50 °C (32 to 122 °F) (SITRANS F M MAG 8000 CT)
          • Liner EPDM
          • Electrodes Hastelloy C 276
          • Enclosure IP68 (NEMA 6P)
          • Material Transmitter: Stainless steel top housing (AISI 316) and coated brass bottom.
          • Sensor: Carbon steel
          • Approvals WRAS, KTW, DVGW 270, ACS, Belgaqua, NSF/ANSI Standard 61, MID (EU), OIML R49, MCERTS Sira Certificate No. MC080137/00
            • NMI 10

            Documents

            • Spec Sheet
            • Manual

            Help and Advice

            Need a few things clearing up? Check out our Help and Advice section.

            SIEMENS

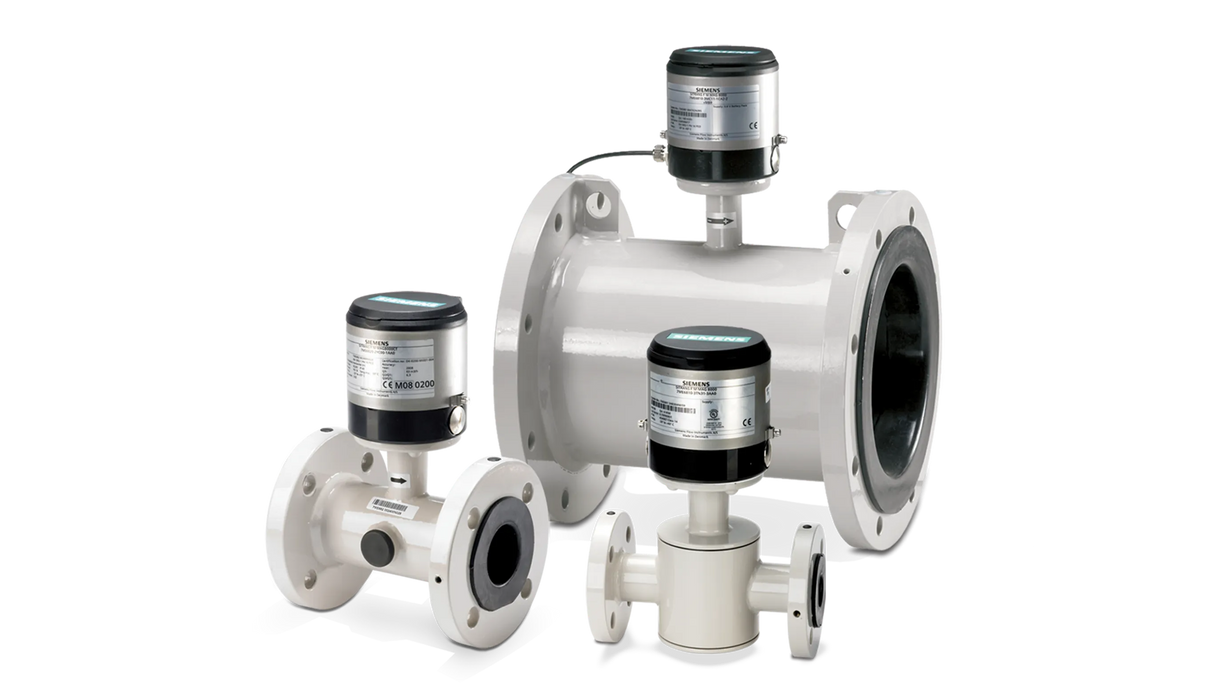

            SITRANS FM MAG 8000
