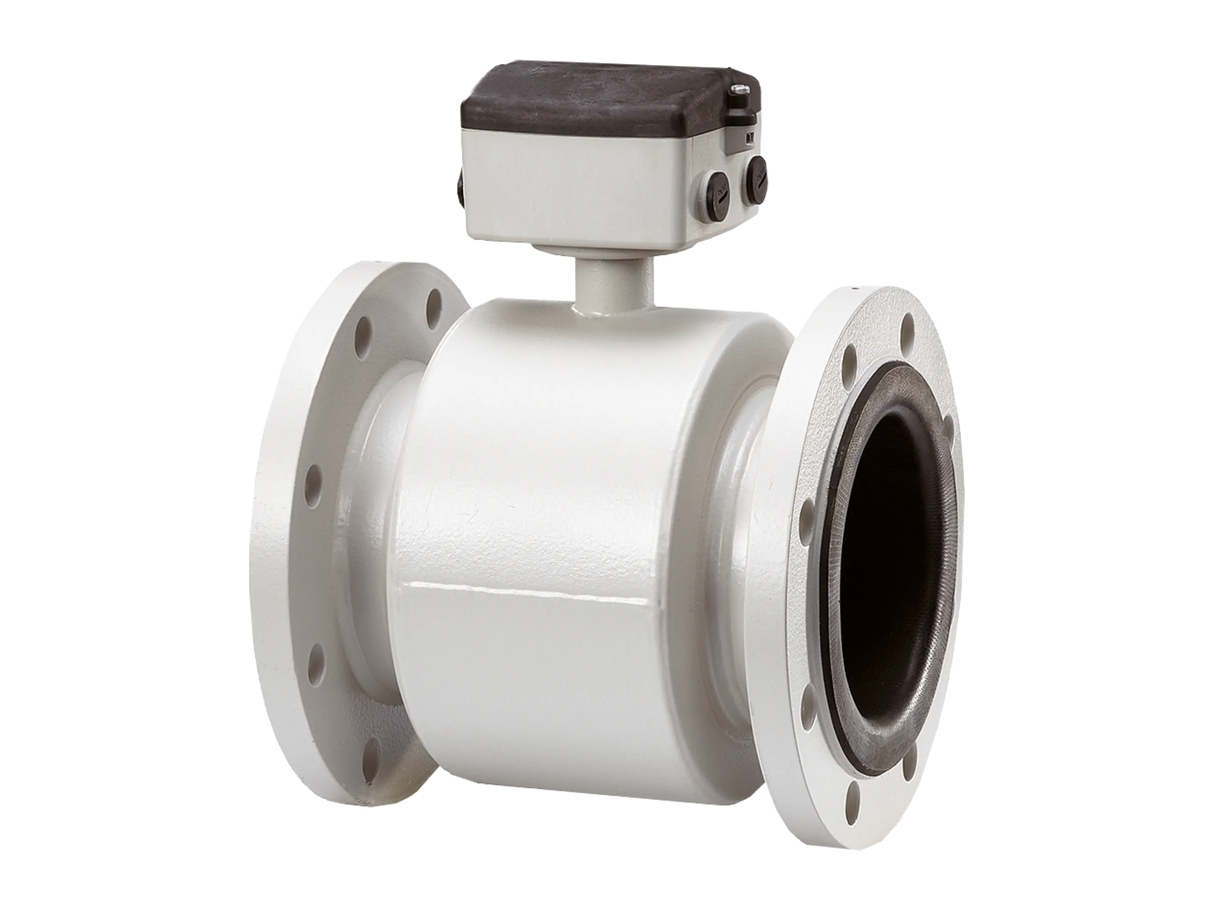

SITRANS FM MAG 3100

SITRANS FM MAG 3100 is an electromagnetic flow sensor with a large variety of liners, electrode material and with grounding electrodes as standard, all this ensures a perfect fit for almost every flow application.

• Fully welded construction that is extremely rugged and can withstand special process conditions using extreme measurement electrodes
• Universal applications - lining and electrodes available for every application
• High temperature version available up to 356 °F
• Approved for use in potentially explosive atmospheres
• SITRANS FM portfolio - our integrated platform enables flexible use of the MAG 5000 / 6000 transmitter for all products (MAG 5100 / 3100/1100):
• • Unique SensorProm technology - stores critical, sensor-specific data and passes it to the transmitter. This allows a simple, flexible commissioning of the sensor.
• • Plug & Play - allows easy on-site replacement and commissioning of the transmitter in just minutes
• • "Hot swapable" - exchangeable during operation
• • Mounting flexibility - compact or separate installation possible
• • Validated calibration ensures accurate flow measurement. Each Siemens flowmeter is calibrated in facilities that are individually accredited to ISO / IEC 17025.
• • Service and diagnostics - designed for MAG on-site verification with traceable certification. Regular calibration of the SITRANS FM Verificator ensures accuracy in the field.

Detail

• Measuring range 0 to 10 m/s
• Nominal Sizes From DN 15 to DN 2000 (½" to 78")
• Accuracy 0.2 % ±1 mm/s
• Operating Pressure Max. 100 bar (Max. 1450 psi)
• Ambient temperature From -40 to 100 °C (-40 to +212 °F)
• Medium temperatura From -40 to 180 °C (-40 to 356 °F)
• Liners Neoprene
• EPDM
• PTFE
• PFA
• Ebonite
• Linatex
• Electrodes AISI 316 Ti (1.4571)
• Hastelloy C
• Platinum/iridium
• Titanium
• Tantalum
• Material Carbon steel (or AISI 304) with corrosion resistant two component epoxy coating or AISI 316 L polished flanges and housing
• General approvals E.g.: ATEX, FM, CSA, CT and Drinking Water approvals
