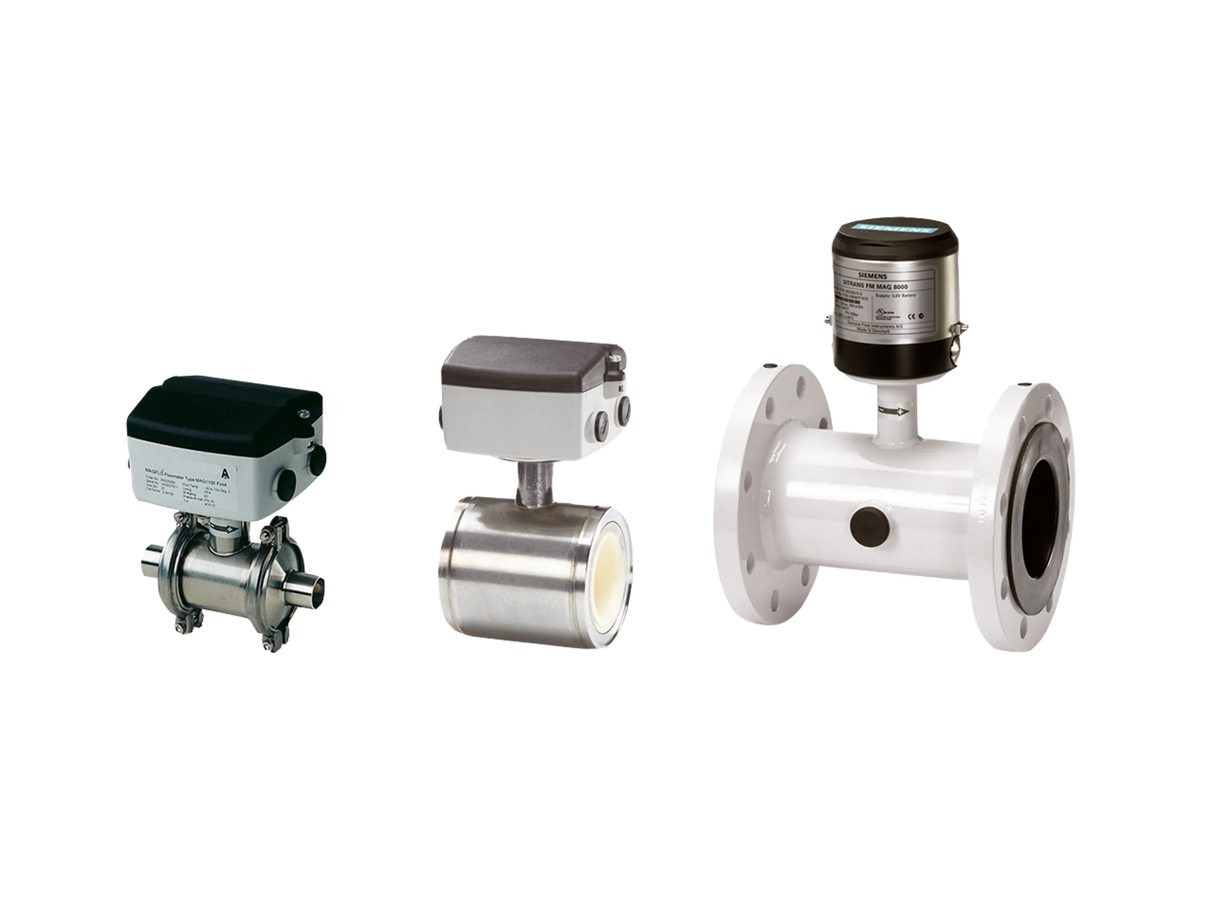

SITRANS FM MAG 1100 F

The SITRANS FM MAG 1100 F sensor is especially designed for the food & beverage and pharmaceutical industries and is available with hygienic and flexible process connections.

• Flexible and unique process connections
• Standard liner options that fully cover the food and beverage applications
• Short delivery time on standard process connections
• Sanitary design for CIP/SIP cleaning
• SITRANS FM portfolio – our integrated platform enables flexible use of the MAG 500 / 6000 transmitter for all products (MAG 5100 /3100/ 1100):
• • Unique SensorProm technology - stores critical, sensor-specific data and passes it to the transmitter. This allows a simple, flexible commissioning of the sensor.
• • Plug & Play - allows easy on-site replacement and commissioning of the transmitter in just minutes
• • "Hot swapable" - exchangeable during operation
• • Mounting flexibility - compact or separate installation possible
• • Validated calibration ensures accurate flow measurement. Each Siemens flowmeter is calibrated in facilities that are individually accredited to ISO / IEC 17025.
• • Service and diagnostics - Designed for MAG on-site verification with traceable certification. Regular calibration of the SITRANS FM Verificator ensures accuracy in the field.

Detail

• Meassuring range 0 to 10 m/s
• Nominal size From DN 10 to DN 100 (3/8" to 4")
• Accuracy 0.2 % ± 1 mm/s
• 0.4 % ± 1 mm/s (PFA)
• Operating pressure Max. 40 bar (Max. 580 psi)
• Ambient temperature From -40 to 100 °C (-40 to 212 °F)
• Medium temperature From -30 to 150 °C (-20 to 300 °F)
• Liners Ceramics
• PFA
• Electrodes Platinum
• Hastelloy
• Material Stainless steel AISI 316L (1.4404)
• Approvals ATEX - 2 GD Zone 1, FM Class 1 div 2 3A
