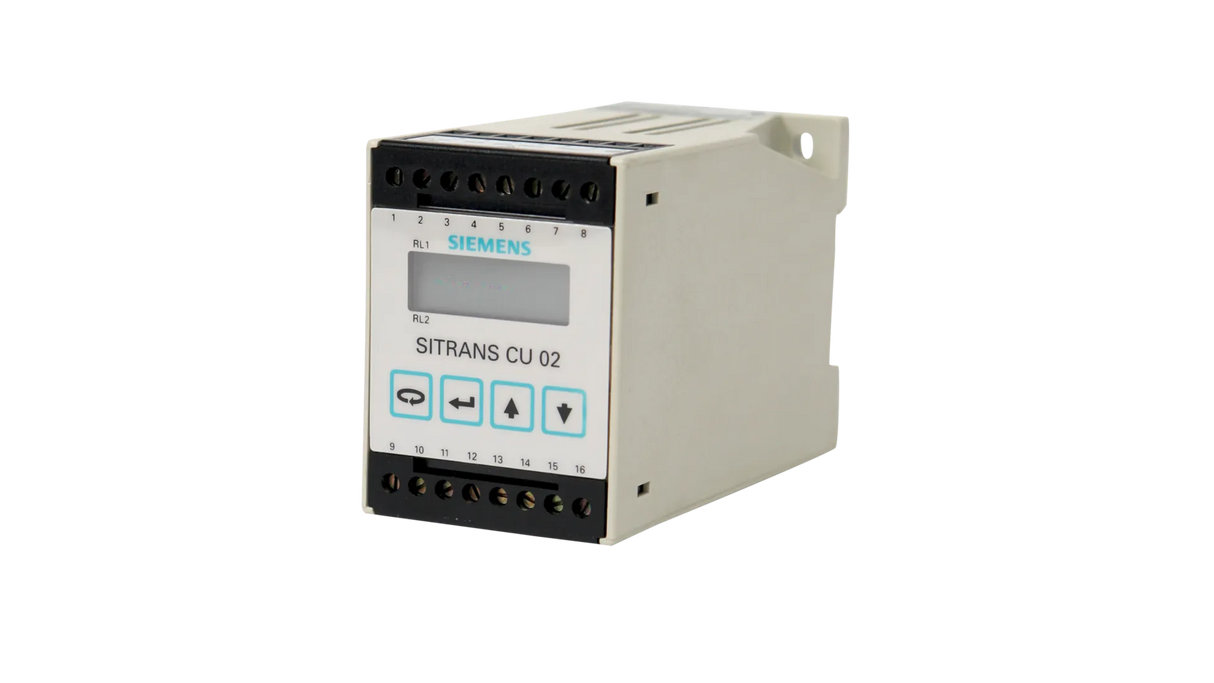

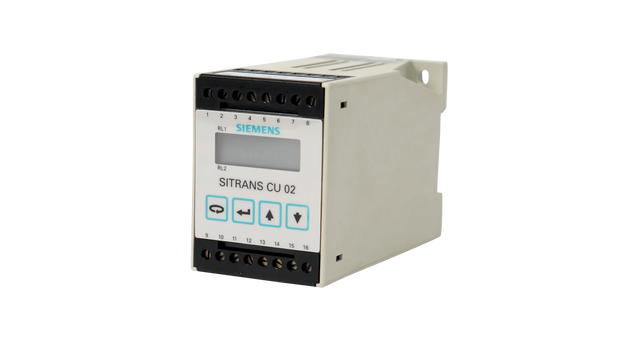

SITRANS CU02

Process controlling and protection
Process protection devices can be used as early warning systems to avoid costly interruptions and breakdowns of equipment. They detect flow systems, blockages, screen faults, machinery slowdowns, or burst filter bags. Their rugged construction makes them impervious to dust, dirt buildup, and moisture.

• Readily configured for set points indicating such conditions as high flow, low flow or no flow
• Two relays are fully programmable and independent of each other and can be used to operate an alarm or control device
• DIN rail mounting provides easy installation
• Adjustable start-up time delay

Detail

• Power Supply: 100, 115, 200, 230, V AC ± 15%, 50/60 Hz, factory set
• 10 VA max
• Input: 0 to 10 V DC from AS100 sensor
• 4 to 20 mA isolated output
• 2 Form C relays
• 26 V DC supply for AS100 sensor
• Operating Temperature: -20 to 50 °C (-5 to 122 °F)
• Enclosure: Polycarbonate/DIN Rail (DIN 46277 or DIN EN 50022) mounting
