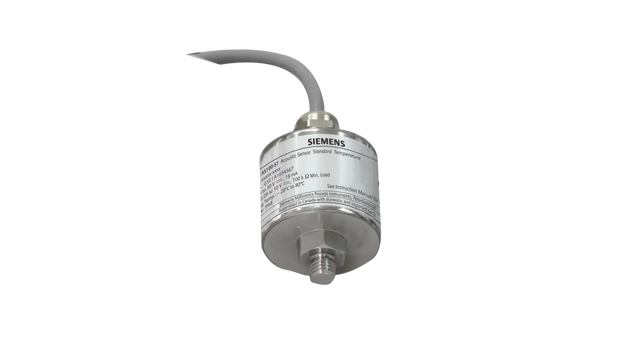

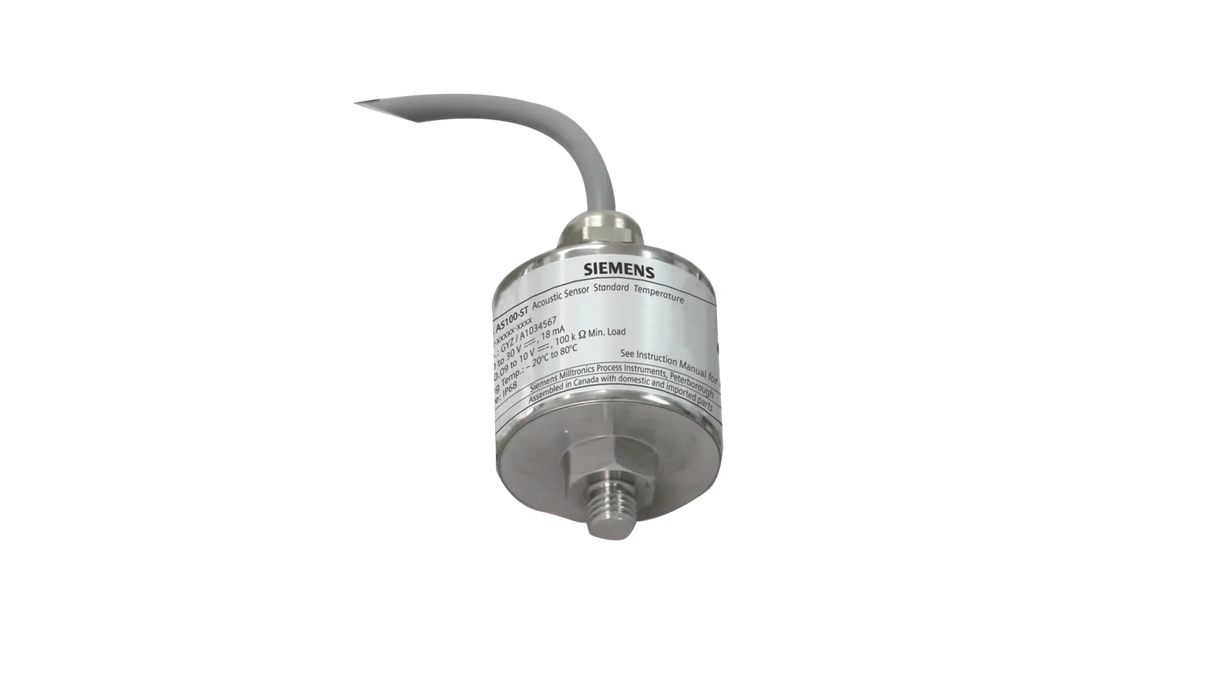

SITRANS AS100

Process controlling and protection
Process protection devices can be used as early warning systems to avoid costly interruptions and breakdowns of equipment. They detect flow systems, blockages, screen faults, machinery slowdowns, or burst filter bags. Their rugged construction makes them impervious to dust, dirt buildup, and moisture.

• Operating with a SITRANS CU02 control unit, the system detects conditions of high flow, low flow or no flow
• The non-invasive design requires little or no maintenance
• Mulitple mounting options, screw in, bolt on, weld, or bond in place
• With a high and low sensitivity range of operation, the sensor offers an exceptionally wide range of application capabilities

Detail

• Power Supply: 20 to 30 V DC, 18 mA (typical)
• Output: 0.08 to 10 V DC analog
• Standard: -20 to 80 °C (-4 to 176 °F)
• Extended: -40 to 125 °C (-40 to 257 °F)
• Enclosure: 304 (1.4301) Stainless Steel/IP68/4 meter integral cable
