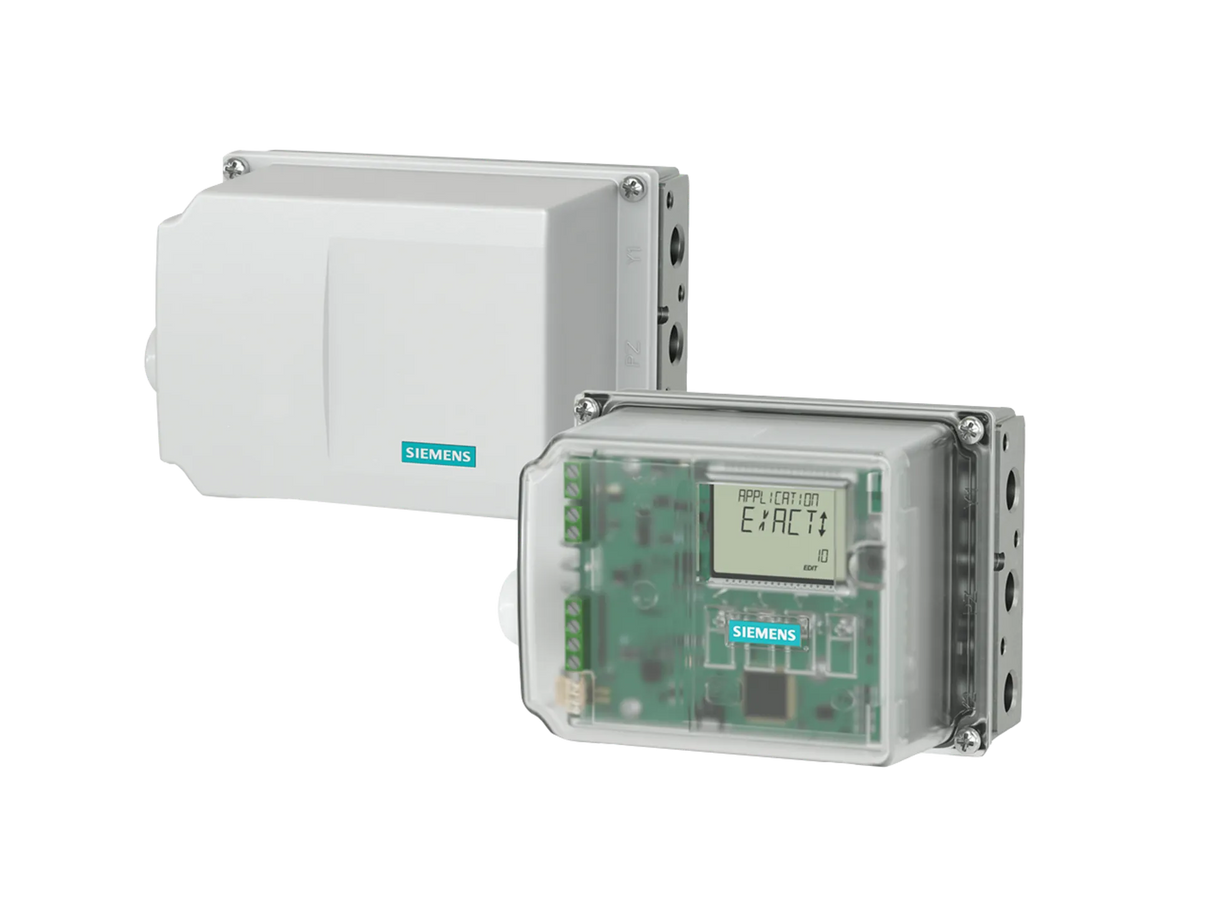

Positioner SIPART PS100

0.00 ฿

Highlight title

Text to highlight a key feature of your product

Positioners
As the interface between the control system and valves, positioners play an important role in ensuring reliability and optimal performance in your automated process plants. With the SIPART PS2 and SIPART PS100, Siemens provides two proven-in-use positioners suitable for every application and requirement to control your valves easily, fast, and reliably.

  • Fast and easy commissioning saves time and costs
  • High reliability and product lifetime thanks to robust housings and high-quality device components
  • Innovative features for precise, fast and solid valve control
  • High plant availability

    Detail

    • Enclosure: Aluminum, Aluminum/Polycarbonate
    • Communication: 4…20mA, HART , Bluetooth
    • Digital Input/ Digital Output: 1 DI/ 1 DO
    • Limit Switches: 1 (electronic)
    • Stroke range: 10…130 mm (longer strokes on request);
    • (0,12…5.12´´)
    • Range of rotation: 10…100°
    • Required air quality: Class 3 as per ISO 8573-1
    • Max. air consumption in the controlled state: 0,01 Nm³/h (0.006 scfm)
    • Ambient air temperature: -20…+80 °C (-4…+176 °F)
    • Pneumatic auxiliary power: 1,4 to 7 bar (20,3…101,5 psi)
    • 9,8 m³/h (5.76 SCFM)
    • 19,2 m³/h (11.30 SCFM)
    • Degree of protection: Type 4X, IP66
    • ATEX, IECEx: Ex i, Ex e, Ex t
    • FM, CSA: IS, NI/I/2, DIP

      Documents

      • Spec Sheet
      • Manual
