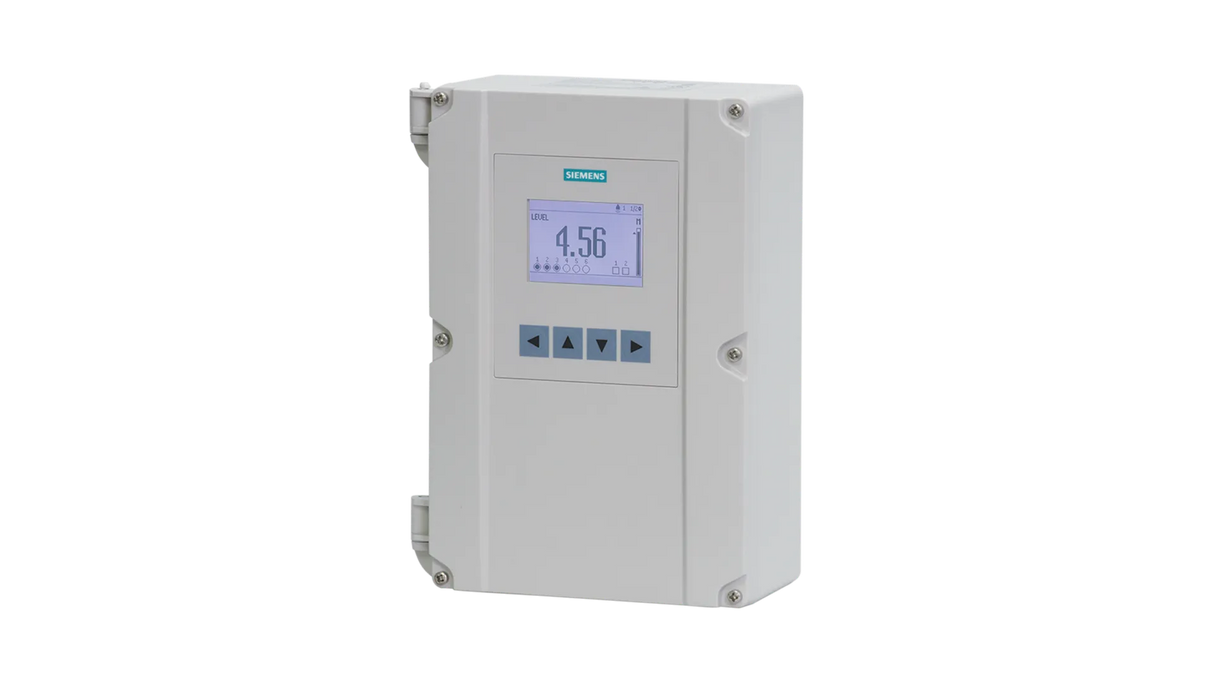

MultiRanger and HydroRanger 200 HMI

Level Controllers
After driving the market in ultrasonic level controllers for the past 40 years, Siemens has evolved its industry-leading solutions to include control for 80 GHz radar sensors. Need high-accuracy open channel monitoring? How about flexible control with multiple relays and ultrasonic? Or perhaps you need a reliable controller for long-range, high-frequency radar? We have you covered.

• Differential measurement and six control relays
• Process Intelligence
• Range of models for simple level measurement or pump control to more complex for differential level, open channel measurement, advanced pump control, alarming, and gate control
• Auto False-Echo Suppression to avoid false echoes from fixed obstructions
• Intuitive ease of use

Detail

• Range: 0.3 to 15 m (1 to 50 ft)
• Compatible transducers: ST-H and Echomax series XPS-10, XPS-15/15F, and XRS-5
• Relays: 6 relays: rating 5 A at 250 V AC, non-inductive
• mA output: 0 to 20 mA or 4 to 20 mA
• RS-485 with Modbus RTU or ASCII
• Compatible with SIMATIC PDM via Modbus RTU, PROFINET, or PROFIBUS
• SmartLinx cards for PROFINET, Modbus TCP/IP, Ethernet/IP, PROFIBUS DP, DeviceNet
• Wet wells, flumes/weirs, bar screen control, hoppers, chemical storage, liquid storage, crusher bins, dry solids storage

Documents

• Spec Sheet
• Manual
