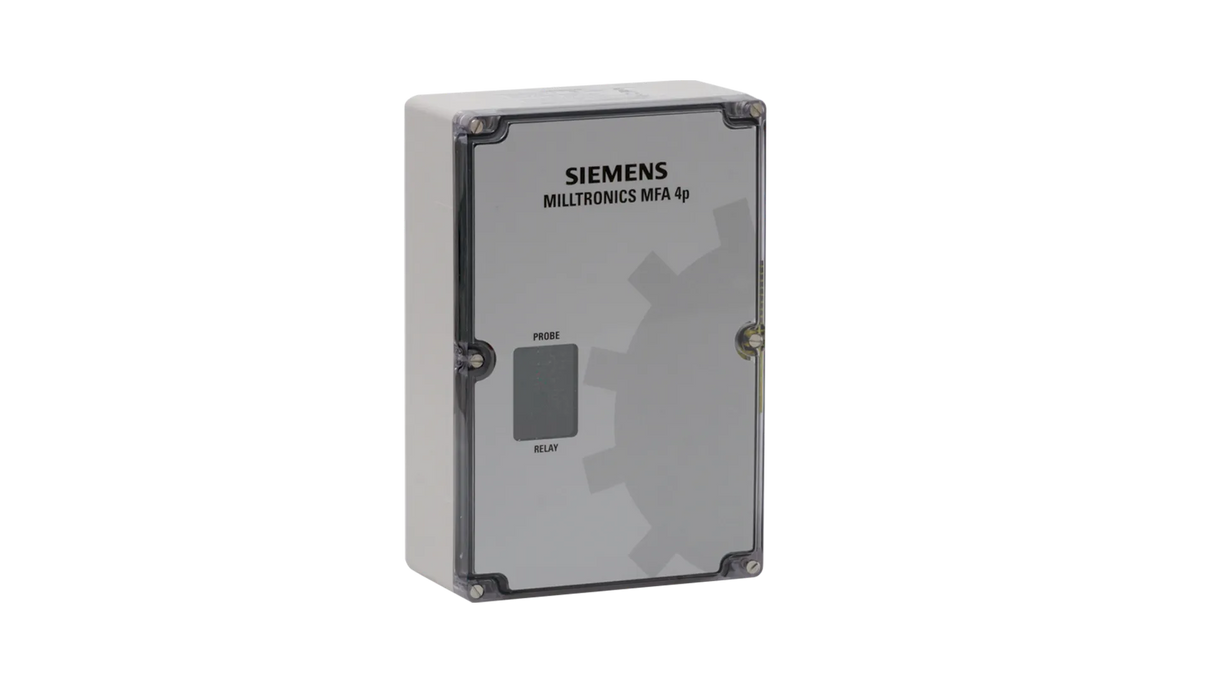

Milltronics MFA 4p

Process controlling and protection
Process protection devices can be used as early warning systems to avoid costly interruptions and breakdowns of equipment. They detect flow systems, blockages, screen faults, machinery slowdowns, or burst filter bags. Their rugged construction makes them impervious to dust, dirt buildup, and moisture.

• Cost-effective way to protect valuable process equipment
• Switch selectable overspeed or underspeed detection
• Setpoint adjustment 2 to 3000 PPM (pulses/minute)
• Adjustable start-up time delay
• Visual indication of probe operation and relay status

Detail

• Power Supply:
  - 100 to 240 V AC, 50/60 Hz,
  - 15 VA, ± 10 % of rated voltage
• Inputs: Current pulse from Motion Sensing Probes 0 to 7200 pulses per minute
• Outputs: 2 SPDT Form C relay
• Operating Temperature: -20 ... +50 °C (-5 ... +122 °F)
• Enclosure:
  - Polycarbonate
  - Type 4X / NEMA4X / IP65

Documents

• Spec Sheet
• Manual
